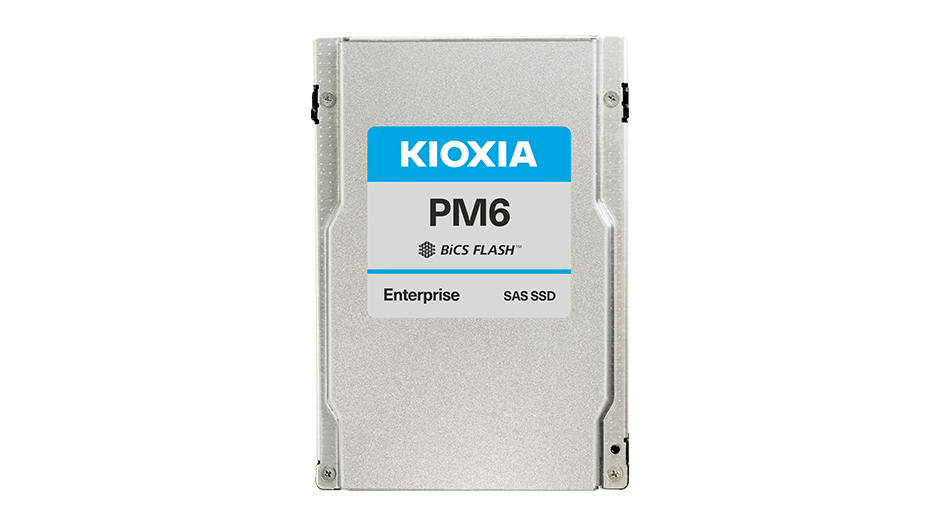

Image of pm6-v_001

Enterprise SAS Mixed Use SSD

KIOXIA PM6-V Series 24G SAS Enterprise SSD is optimized for mixed use applications, including relational database, streaming media, data warehousing and web services. The series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments.

Featuring KIOXIA Corporation’s 96-layer BiCS FLASHTM 3D flash memory, this 6th generation enterprise SAS SSD PM6-V offers 3 DWPD (Drive Writes Per Day) with capacities up to 12.8 TB.

Documents

Key Features

  • 24G SAS interface with single/dual-port support
  • Capacities from 800 GB to 12.8 TB
  • Up to 595K random read IOPS (4 KiB) in dual-port mode
  • 2.5-inch form factor, 15 mm thickness
  • 3 DWPD with 100 % Random Write Workload
  • Power Loss Protection and End-to-End Data Protection, including T10 DIF
  • Security options: SIE, SED, FIPS SED[1][2][3][4][5]
  • 5-year limited warranty

Key Applications

  • Web servers
  • Data warehousing
  • Streaming media

Specifications

* 表格可以水平滚动。

Base Model NumberKPM61VUG12T8KPM61VUG6T40KPM61VUG3T20KPM61VUG1T60KPM61VUG800G
SIE Model NumberKPM6XVUG12T8KPM6XVUG6T40KPM6XVUG3T20KPM6XVUG1T60KPM6XVUG800G
SED Model NumberKPM6VVUG12T8KPM6VVUG6T40KPM6VVUG3T20KPM6VVUG1T60KPM6VVUG800G
FIPS SED Model NumberKPM6WVUG12T8KPM6WVUG6T40KPM6WVUG3T20KPM6WVUG1T60KPM6WVUG800G
Capacity12,800 GB6,400 GB3,200 GB1,600 GB800 GB
Basic Specifications
Form Factor2.5-inch, 15mm thickness
lnterfaceSAS-4
lnterface Speed22.5 Gbit/s, 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s
Flash Memory TypeBiCS FLASH™ TLC
Performance (Up to)
Sustained 128 KiB Sequential Read4,150 MB/s
Sustained 128 KiB Sequential Write3,700 MB/s2,450 MB/s2,700 MB/s1,450 MB/s
Sustained 4 KiB Random Read595K IOPS
Sustained 4 KiB Random Write305K IOPS290K IOPS240K IOPS265K IOPS145K IOPS
Power Requirements
Supply Voltage12 V ± 10 %, 5 V +10 % / -7 %
Power Consumption (Ready)5 W typ.
Reliability
MTTF2,500,000 hours
Warranty5 years
DWPD3
Dimensions
Thickness15.0 mm +0 / -0.5 mm
Width69.85 mm ± 0.25 mm
Length100.45 mm Max
Weight130 g Max
Environmental
Temperature (Operating)0 °C to 70 °C
Temperature (Non-operating)-40 °C to 80 °C
Humidity (Operating)5 % to 95 % R.H.
Vibration (Operating)21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
Shock (Operating)9.8 km/s2 { 1,000 G } ( 0.5 ms )
  • Product image may represent a design model.
  • Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
  • GT/s: Giga Transfers per second.
  • A kibibyte (KiB) means 2^10, or 1,024 bytes.
  • MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
  • DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
  • Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
  • IOPS: Input Output Per Second (or the number of I/O operations per second).
  • [1] Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED) and FIPS (Federal Information Processing Standards) SED security optional models are available.
  • [2] SIE optional model supports Crypto Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
  • [3] SED optional model supports TCG Enterprise SSC.
  • [4] FIPS SED optional model utilizes a security module designed to comply with FIPS 140-2 and FIPS 140-3, which define security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through “Contact us”.
  • [5] Security optional models are not available in all countries due to export and local regulations.
  • Other company names, product names, and service names may be trademarks of third-party companies.
