Storage Class Memory (SCM)
Designed for Speed: A Low-Latency, High-Performance Storage Class Memory (SCM) Solution

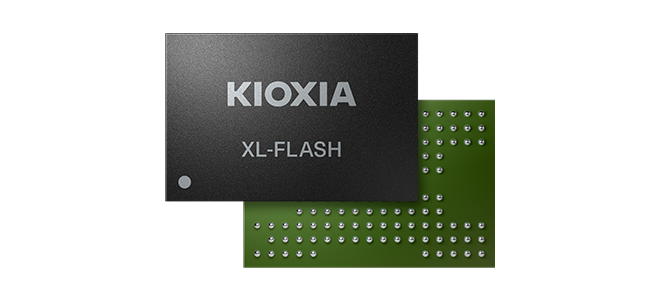

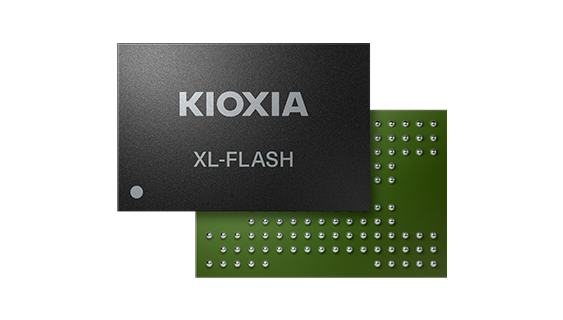

Recognizing the growing demand for a flexible and affordable Storage Class Memory (SCM) solution, KIOXIA developed XL-FLASH, an extremely low-latency, high-performance flash memory. XL-FLASH is designed to address the performance gap that currently exists between volatile memories such as DRAM and current flash memory. Like any flash memory, XL-FLASH has the ability to retain data when disconnected from its power source. KIOXIA has announced the launch of the second generation of XL-FLASH with MLC function.
Built with KIOXIA's BiCS FLASH™ 3D flash memory technology, XL-FLASH was designed to help data centers, cloud providers and enterprises meet the needs of increasingly demanding applications. Easy to manage and scale, XL-FLASH features a 128 gigabit (Gb) die for SLC / 256 gigabit (Gb) die for MLC (in a 2-die, 4-die, 8-die package), a 4kB page size for more efficient operating system reads and writes, fast page read and program times, and a read latency of less than 5 microseconds.

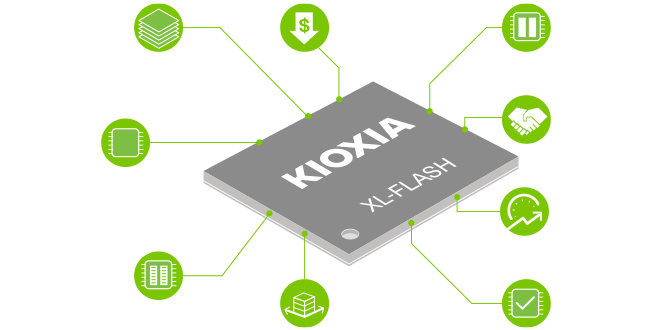

Key Features of KIOXIA XL-FLASH Storage Class Memory
- 16-plane architecture for improved latency
- Compatible flash memory protocol/package
- Fast page read and program time
- High cell reliability
- Scalable BiCS FLASH™ 3D technology
- 4KB page size for more efficient operating system reads and writes
- 128Gb die (SLC) / 256Gb die (MLC) (2-die, 4-die, 8-die package - available now)
XL-FLASH Key Technology
High Performance, Low Latency Solution
XL-FLASH has a unique 16-plane architecture for improved latency. Unlike conventional flash memory products, the word and bit lines are addressed in short dimension and optimized for the circuit structure—dramatically reducing read/write latency.
High Cell Reliability
XL-FLASH is designed with high cell reliability flash memory to support write intensive applications.
Easy to Manag
XL-FLASH uses a standard interface and operation compatible with existing flash memory protocols and products.
XL-FLASH Key Applications
Cloud Server / Edge Server
Automation / Digital Healthcare / Transportation / Surveillance / Robot / Drone / Security / Digital Signage / Networking (5G area network) / PoS (Point of Sales)

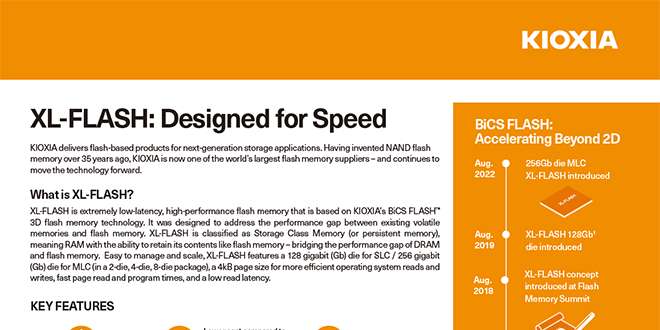

Learn and Evaluate
|Capacity||Part Number||Technology||Cell||Operating Temperature (°C)||Package||Status|
|32GB||TH58LJG8SA4BA4C||BiCS FLASH™||SLC||0 to 70||132Ball BGA
