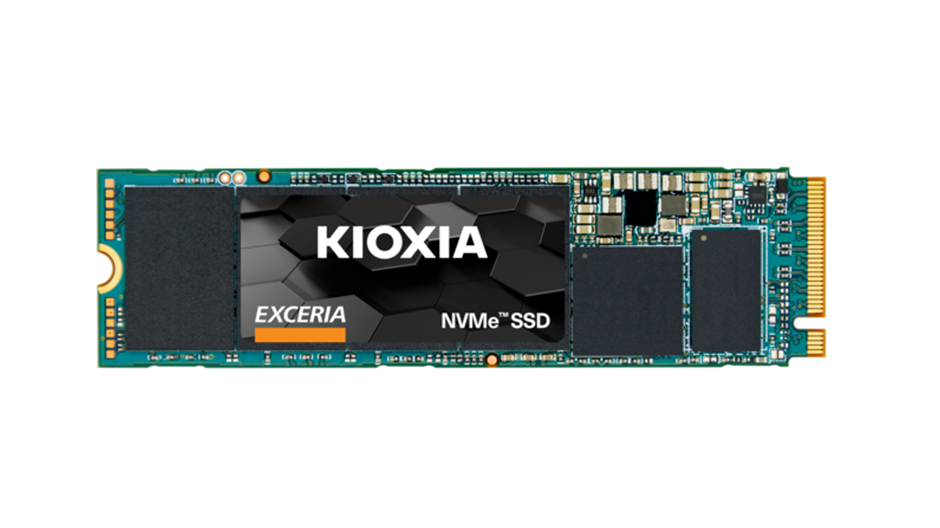

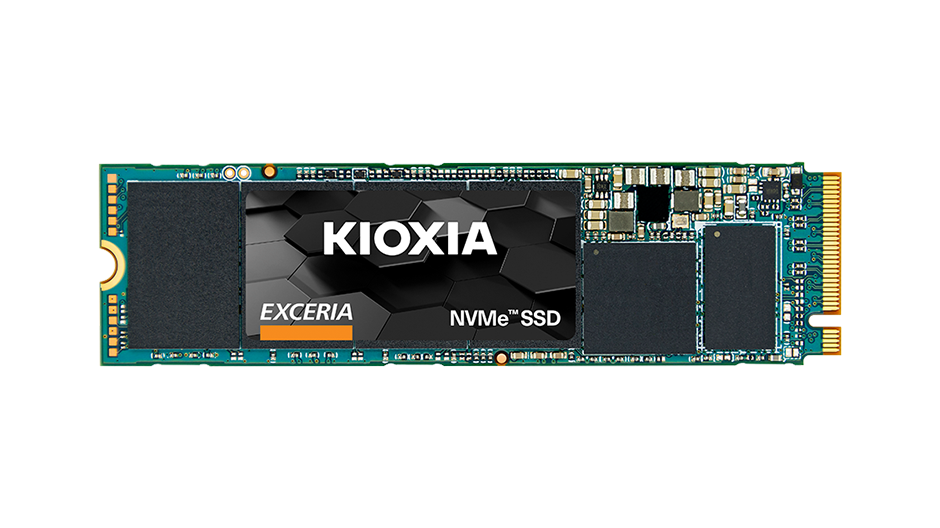

EXCERIA™极至瞬速™ NVMe™ SSD

方寸之间 闪瞬之速

Image of exceria-nvme-ssd_001
Image of exceria-nvme-ssd_002
Image of exceria-nvme-ssd_003
Image of exceria-nvme-ssd_004
Image of exceria-nvme-ssd_005

如何购买

从HDD或SATA SSD升级应该便利且价格合理, 这就是EXCERIA 固态硬盘的用武之地。铠侠EXCERIA固态硬盘系列旨在提升您的移动或PC体验,并提供平衡的性能和价值,从而改变您的系统。利用BiCS FLASH™ 3D闪存,这一新的主流固态硬盘系列提供了高达1TB的容量,M.2 2280的外形尺寸适合台式机和笔记本电脑。

特性

  • BiCS FLASH™
  • NVMe 1.3c 技术
  • M.2 2280 外形尺寸
  • PCIe Gen3 x4 通道
  • SSD Utility 管理软件

应用程序性能最大化

铠侠EXCERIA固态硬盘系列重新定义了主流存储,适合那些被基于SATA的硬件所束缚的日常用户。告别硬盘延迟,获得一个适合您应用程序运行的计算体验。

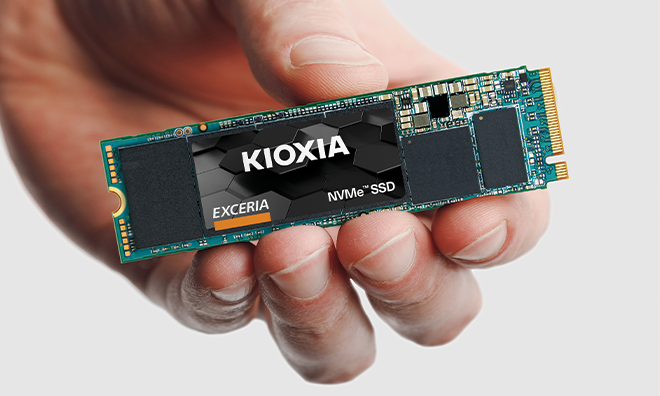

袖珍小巧,便于升级

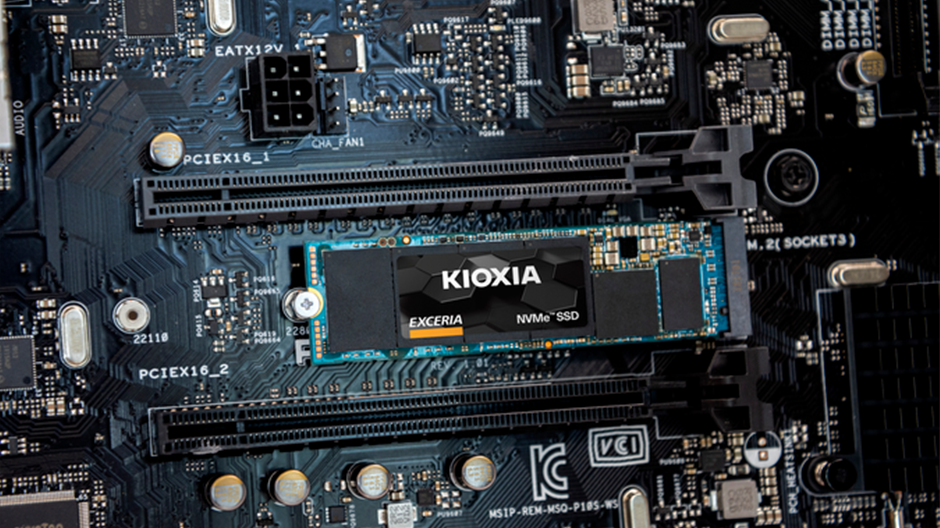

EXCERIA SSD系列采用轻薄的M. 2 2280外形尺寸,直接插入主板,减少了额外的排线,使系统升级更加流畅。

NVMe™技术

为什么一直使用专为硬盘设计的接口? 利用最新的NVMe™ 1.3c技术,EXCERIA固态硬盘减少了系统在固态硬盘和CPU之间的I/O路径的延迟,让系统响应更流畅。

先进的3D闪存技术

每个EXCERIA SSD均采用BiCS FLASH™闪存和垂直堆叠的单元结构,为您提供高端的存储体验。

BiCS FLASH logo

SSD Utility 管理软件

SSD Utility管理软件旨在帮助铠侠产品更好地运行,让您掌控SSD的维护和监控。

我们强烈建议您安装SSD Utility以获得更新的可用固件,从而尽可能地提高产品的性能和使用寿命。

EXCERIA SSD产品规格

容量和尺寸

  • 容量

    250GB, 500GB, 1TB

  • 外形

    M.2 Type 2280-S2-M

  • 接口

    PCI Express® Base Specification Revision 3.1a (PCIe®)

  • 闪存类型

    BiCS FLASH™ TLC

  • 接口速度高达

    32 GT/s (PCIe® Gen3x4L)

  • 外形尺寸 (Max: LxWxH)

    80.15 x 22.15 x 2.23 mm

  • 接口要求

    NVM Express™ Revision 1.3c command set

  • 重量

    250GB: 6.0 g (typ.)
    500GB, 1TB: 6.9 g (typ.)

性能

  • 顺序读取速度高达*1

    1,700 MB/s

  • 顺序写入速度高达*1

    250GB: 1,200 MB/s
    500GB, 1TB: 1,600 MB/s

  • 随机读取速度高达*2

    250GB: 200,000 IOPS
    500GB, 1TB: 350,000 IOPS

  • 随机写入速度高达*2

    250GB: 290,000 IOPS
    500GB, 1TB: 400,000 IOPS

  • 耐久性:TBW*3

    250GB: 100 TB
    500GB: 200 TB
    1TB: 400 TB

  • MTTF

    150 万 小时

操作环境和保护性能

  • 运行温度

    0 ℃ (Ta) 至 85 ℃ (Tc)

  • 存储温度

    -40 ℃ 至 85 ℃

  • 抗震

    9.806 km/s2 {1,000 G} 0.5 ms 半正弦波

  • 防抖动

    196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

  • 工作电压

    3.3 V ±5 %

  • 功耗

    PS3: 50 mW (typ.)
    PS4: 5 mW (typ.)

  • 功耗 (Active)

    250GB: 3.8 W (typ.)
    500GB: 3.9 W (typ.)
    1TB: 5.3 W (typ.)

兼容性

  • PCI Express

    Compatible with PCI Express® Base Specification Revision 3.1a and NVM Express™ Revision 1.3c command set

  • 接口类型

    M.2 M key Socket

  • 目标应用

    個人台式机和笔记本电脑

其他

  • 服务与支持

    5 年质保*4

  • 性能优化

    TRIM, Idle Time Garbage Collection

产品信息

  • 250GB

    PN: LRC10Z250GC8
    EAN: 4582563851931

  • 500GB

    PN: LRC10Z500GC8
    EAN: 4582563851948

  • 1TB

    PN: LRC10Z001TC8
    EAN: 4582563851955

寻找您所在地区的零售商或经销商。

获得最新产品简介、使用说明、安全使用说明、软件等。

铠侠SSD (固态硬盘) 比较表

* Table can be scrolled horizontally.



EXCERIA PRO SSD

EXCERIA PLUS G2 SSD

EXCERIA G2 SSD

EXCERIA SSD

EXCERIA SATA SSD

Target User

Professional

Enthusiast

Mainstream

Mainstream

Upgrader

Capacity

1TB, 2TB

500GB, 1TB, 2TB

500GB, 1TB, 2TB

250GB, 500GB, 1TB

240GB, 480GB, 960GB

Max Sequential Read/Write Speed*1

2TB: 7,300/6,400 MB/s

2TB: 3,400/3,200 MB/s

2TB: 2,100/1,700 MB/s

1TB: 1,700/1,600 MB/s

960GB: 555/540 MB/s

Max Random Read/Write Speed*2

2TB: 800,000/1,300,000 IOPS

2TB: 680,000/620,000 IOPS

2TB: 360,000/400,000 IOPS

1TB: 350,000/400,000 IOPS

960GB: 81,000/88,000 IOPS

Interface

PCIe Gen4 x4 / NVMe™ 1.4

PCIe Gen3 x4 / NVMe™ 1.3c

PCIe Gen3 x4 / NVMe™ 1.3c

PCIe Gen3 x4 / NVMe™ 1.3c

Serial ATA (SATA) 6 Gbit/s

Form Factor

M.2 Type 2280-S2-M

M.2 2280-D3-M

M.2 Type 2280-S2-M

M.2 Type 2280-S2-M

2.5-inch, 7mm height

Endurance (TBW)*3

Up to 800 TB

Up to 800 TB

Up to 800 TB

Up to 400 TB

Up to 240 TB

Warranty Period*4

5 years

5 years

5 years

5 years

3 years

  1. EXCERIA PRO SSD / EXCERIA G2 SSD: Sequential speeds are measured with CrystalDiskMark 8.0.1 x64, Q=32, T=1.
    EXCERIA PLUS G2 SSD / EXCERIA PLUS SSD / EXCERIA SSD: Sequential speeds are measured with CrystalDiskMark 6.0.2 x64, Q=32, T=1.
    EXCERIA SATA SSD: Sequential speeds are measured with ATTO v3.05, QD10.
    These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written.
  2. EXCERIA PRO SSD/ EXCERIA G2 SSD: 4KiB random performance is measured with CrystalDiskMark 8.0.1 x64, Q=32,T=16.
    EXCERIA PLUS G2 SSD / EXCERIA PLUS SSD / EXCERIA SSD: 4KiB random performance is measured with CrystalDiskMark 6.0.2 x64, Q=32,T=8.
    EXCERIA SATA: 4KiB random performance is measured with CrystalDiskMark 5.1.2 x64 QD32.
    These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written.
  3. Definition and conditions of TBW (Terabytes Written) are based on JEDEC standard; JESD219A Solid-State Drive (SSD) Endurance Workloads, July 2012, and defined for the service life.
  4. MANUFACTURER’S WARRANTY IS EFFECTIVE EITHER (I) WARRANTY PERIOD FROM THE DATE OF PURCHASE IN ITS ORIGINAL SEALED PACKAGING OR (II) FOR THE TIME PERIOD UNTIL THE "PERCENTAGE LIFE LEFT" WILL BE ZERO, WHICHEVER IS SHORTER. The "Percentage Life Left" can be found using "Health" gauge of the SSD Utility for KIOXIA products, which is available at "personal.kioxia.com/support/".

Definition of capacity: KIOXIA defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 230 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.

A kibibyte (KiB) means 210, or 1,024 bytes, a mebibyte (MiB) means 220, or 1,048,576 bytes, and a gibibyte (GiB) means 230, or 1,073,741,824 bytes.

IOPS: Input Output Per Second (or the number of I/O operations per second)

MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.

Read and write speed may vary depending on the host device, read and write conditions, and file size.

Subject to Change: While KIOXIA has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.

Product image may represent design model. Images for illustration purpose only. The product appearance may differ from the actual product. Actual number of flash components differs by drive capacity.
