EXCERIA G2 microSD 存储卡

特性

产品规格

产品比较

Storage that Delivers

容量

32GB 64GB 128GB 256GB 512GB
读取/写入速度高达

100/50 MB/s
速度等级
應用性能等級
建议使用场景

4K 摄影 / 摄像

全新升级的铠侠EXCERIA G2 microSD存储卡现在提供高达512GB的容量选择，为您的游戏，图片，歌曲和视频提供大空间存储。EXCERIA G2系列具有高达 50 MB/s ^（1）的写入速度，符合 UHS Speed Class 3 （U3）和 Video Speed Class 30 （V30）的 4K 视频录制要求。

microSD 存储卡系列

特性

4K Video Recording

Android™ Compatible

Waterproof

Shock Proof

X-ray Proof

Temperature Durability

ESD Immunity

Overheating/Ignition Prevention

为 4K 开辟道路

清晰生动的4K视频让一切变得不同。EXCERIA G2 microSD系列产品支持 UHS Speed Class 3 （U3）和 Video Speed Class 30 （V30），实现4K视频拍摄。

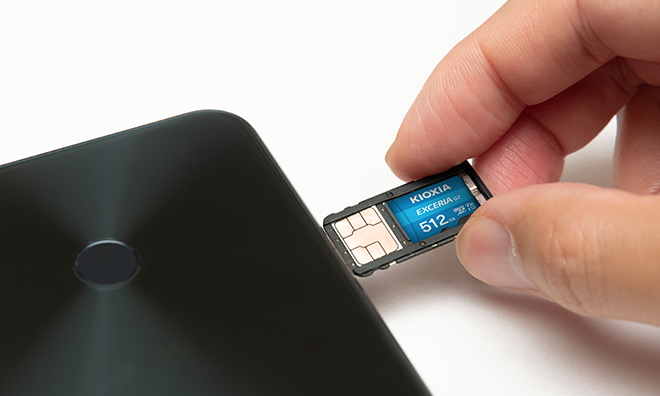

为您提供更多存储空间

现在，EXCERIA G2系列可提供高达512GB的容量，帮助您在智能手机或其他设备上存储更多数据。该产品可录制长达629分钟的4K（100Mbps）视频，拍摄多达 77,030张照片（18MPixel），随时随地拍摄所需。

预估拍摄图片张数及视频录制时间 [分钟]

照片（张）*

* 表格可以水平滚动。

容量	5 Mpixel	10 Mpixel	18 Mpixel
512GB	325,420	152,210	77,030
256GB	162,710	76,100	38,510
128GB	81,350	38,050	19,250
64GB	40,670	19,020	9,620
32GB	20,330	9,510	4,810

拍摄数量：假定压缩率为 1/4。可以拍摄的照片数量取决于拍摄对象、拍摄条件、分辨率和压缩率。

视频（分钟）*

* 表格可以水平滚动。

容量	HD(12Mbps)	Full HD(21Mbps)	4K(100Mbps)
512GB	5,240	2,990	629
256GB	2,620	1,490	314
128GB	1,310	740	157
64GB	650	370	78
32GB	320	180	39

录制时间：实际录制时间会因您的设备、分辨率和压缩率而异。计算为 1 Mbps = 1,000,000 bps。

EXCERIA G2 microSD 存储卡产品规格

容量和尺寸

容量

32GB (microSDHC), 64GB, 128GB, 256GB, 512GB (microSDXC)
用户可用容量^*2

28.8GB, 57.6GB, 115.2GB, 230.4GB, 460.8GB
接口

UHS-I
外形尺寸 (LxWxH)

15.0 x 11.0 x 1.0 mm
重量

约 0.3 g

性能

读取速度高达^*1

100 MB/s
写入速度高达^*1

50 MB/s
UHS 速度等级^*3

U3
视频速度等级^*3

V30
SD 速度等级^*3

C10
应用性能等级^*4

A1

操作环境和保护性能

运行温度

-25 ℃ 至 85 ℃ (无结露)
认证

RoHS 适合^*5
防水

IPX7防水^*6,11
防X射线

ISO7816-1 compliant^*7,11
抗冲击

通过5米跌落测试^*8,11
防止过热/爆燃

装有保险丝^*9,11
ESD免除

静电防护^*10,11

兼容性

目标应用

相机、手机、平板电脑、电子书
32GB 及以下型号

兼容microSDHC主设备、及支持FAT32文件系统的microSDXC主设备
64GB及以上型号

兼容支持exFAT文件系统的microSDXC主设备

其他

服务与支持

5 年质保
包含配件

--
版权保护 (CPRM)

--

产品信息

32GB

PN: LMEX2L032GC4
EAN: 4582563854581
64GB

PN: LMEX2L064GC4
EAN: 4582563854598
128GB

PN: LMEX2L128GC4
EAN: 4582563854604
256GB

PN: LMEX2L256GC4
EAN: 4582563854611
512GB

PN: LMEX2L512GC4
EAN: 4582563854628

产品购买

寻找您所在地区的零售商或经销商。

文件软件下载

获得最新产品简介、使用说明、安全使用说明、软件等。

KIOXIA microSD 存储卡比较表

* Table can be scrolled horizontally.

	EXCERIA HIGH ENDURANCE	EXCERIA PLUS	EXCERIA G2	EXCERIA
Video Recording	64, 128, 256, 512GB: 4K 32GB: Full HD	4K	4K	Full HD
Max Read/Write Speed^*1 (MB/s)	256, 512GB: 100/85 64, 128GB: 100/65 32GB: 100/30	256GB, 512GB, 1TB: 100/85 64, 128GB: 100/65 32GB: 98/65	100/50	100/--
Capacity^*2	32, 64, 128, 256, 512GB	32, 64, 128, 256, 512GB, 1TB	32, 64, 128, 256, 512GB	16, 32, 64, 128, 256GB
SD Interface	UHS-I	UHS-I	UHS-I	UHS-I
SD Speed Class^*3	C10	C10	C10	C10
UHS Speed Class^*3	64, 128, 256, 512GB: U3 32GB: U1	U3	U3	U1
Video Speed Class^*3	64, 128, 256, 512GB: V30 32GB: V10	V30	V30	--
Application Performance Class^*4	A1	A1	A1	--
Waterproof^*6,11	Yes	Yes	Yes	Yes
X-ray Proof^*7,11	Yes	Yes	Yes	Yes
Shock Proof^*8,11	Yes	Yes	Yes	Yes
Overheating / Ignition Prevention^*9,11	Yes	Yes	Yes	Yes
ESD Immunity^*10,11	Yes	Yes	Yes	Yes
CPRM	Supported	Supported	--	--
Endurance	High	Standard	Standard	Standard
Warranty Period	3 or 5 years	5 years	5 years	5 years

1 MB/s is calculated as 1,000,000 bytes/s. These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written. The write speed is lower than the read speed.
Capacity is based on installed flash memory and not user available memory as part of the memory is used for management functions. Available user area are as listed above (1GB = 1,073,741,824 bytes).
Speed classes indicate the results under the test conditions specified by SD Association.
Application Performance Class is based on the result measured under the conditions specified by SD Association.
KIOXIA Corporation defines “RoHS Compatible” products as products that either ( i ) contain no more than a maximum concentration value of 0.1% by weight in Homogeneous Materials for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), bis(2-ethylhexyl) phthalate (DEHP), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP) and diisobutyl phthalate (DIBP) and of 0.01% by weight in Homogeneous Materials for cadmium; or ( ii ) fall within any of the application exemptions set forth in the Annex to the RoHS Directive(*). This does not mean that Kioxia Corporation products labeled “RoHS COMPATIBLE” are entirely free of substances controlled by the RoHS Directive and does not constitute a warranty or guarantee that such products will comply with the specific laws and/or regulations adopted in any particular jurisdiction.
*RoHS Directive: KIOXIA Corporation defines “RoHS Directive” as the DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
According to IPX7 standard, the product (only card) can function, after it is submerged quietly and left for 30minutes in static tap water at room temperature(15 °C to 35 °C) and in depth of 1m and then it is taken out of the water.
According to ISO7816-1 standard, the product can function, after contaminating this product on 0.1 Gy of X-ray.
The product (only card) can function, after carrying out the gravity fall of this product (only card) from 5 m in height. ( Based on KIOXIA Corporation's test results.)
KIOXIA Corporation does not warrant that the function of the fuse in the card will be error free, nor does it warrant that any data stored on the card will remain accessible or uncorrupted. Turn off the device immediately in case the card overheats and/or emits a burning smell.
ESD test environment stipulated by IEC61000-4-2 150-pF energy storage capacitor, 330-Ω discharge resistor, ±15-kV air discharge.
KIOXIA Corporation does not warrant any data stored on the product.
Designed target of accumulated time based on Full HD (1920x1080) video content recorded at 21Mbps or 4K (3840x2160) video content recorded at 100 Mbps. Results may vary depending on a device and other conditions.
