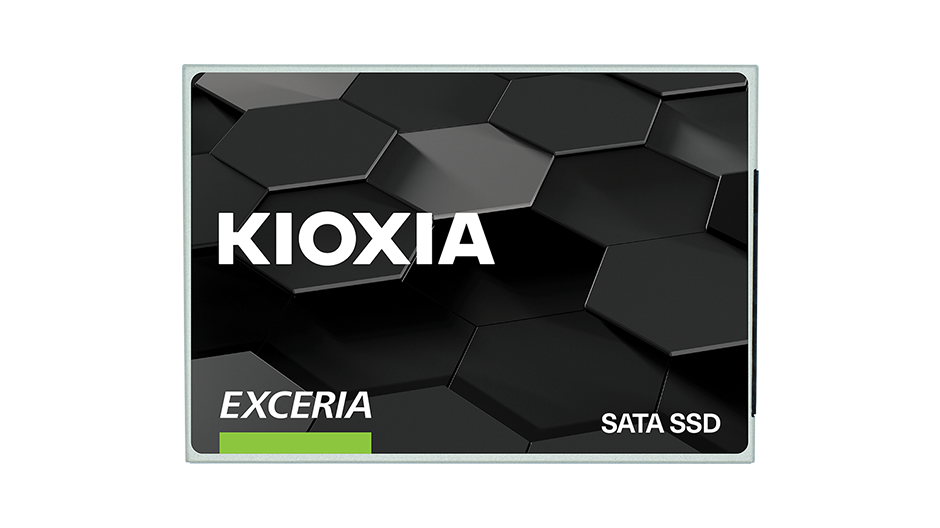

EXCERIA™极至瞬速™ SATA SSD

风驰电掣 畅快淋漓

Image of exceria-sata-ssd_001
Image of exceria-sata-ssd_002

如何购买

重视您的工作效率,让您以实惠的价格从HDD升级,这就是EXCERIA SATA固态硬盘系列的用武之地。EXCERIA SATA固态硬盘系列旨在提高台式机或笔记本电脑的速度,它利用BiCS FLASH™实现高性能和高可靠性,从而改变台式或移动设备。

特性

  • BiCS FLASH™
  • 抗震
  • 2.5英寸, 7mm 固态硬盘
  • SSD Utility 管理软件

即时性能升级

用EXCERIA SATA 固态硬盘系列提高您的运行效率,享受更快的启动、文件传输和系统响应。告别硬盘延迟,获得更高效的运行体验。

高性价比

从传统的硬盘升级到固态硬盘会让人觉得焕然一新。EXCERIA SATA固态硬盘系列的高性价比让您节省更多。

不断改善性能

与HDD相比,EXCERIA SATA 固态硬盘系列还提供了更好的耐用性和功耗,这可以转化为更长的电池寿命,让您保持运行更长的时间。

先进的3D闪存技术

每个EXCERIA SSD均采用BiCS FLASH™闪存和垂直堆叠的单元结构,为您提供高端的存储体验。

BiCS FLASH™ logo

SSD Utility 管理软件

SSD Utility管理软件旨在帮助铠侠产品更好地运行,让您掌控SSD的维护和监控。

我们强烈建议您安装SSD Utility以获得更新的可用固件,从而尽可能地提高产品的性能和使用寿命。

EXCERIA SATA SSD产品规格

容量和尺寸

  • 容量

    240GB, 480GB, 960GB

  • 接口

    Serial ATA (SATA) 6 Gbit/s

  • 外形

    2.5-inch, 7mm厚

  • 闪存类型

    BiCS FLASH™ TLC

  • 外形尺寸 (Max: LxWxH)

    100.45 x 70.10 x 7.20 mm

  • 重量

    240GB: 45.5 g (typ.)
    480GB: 45.6 g (typ.)
    960GB: 45.7 g (typ.)

性能

  • 顺序读取速度高达*1

    555 MB/s

  • 顺序写入速度高达*1

    540 MB/s

  • 随机读取速度高达*2

    240GB: 79,000 IOPS
    480GB: 82,000 IOPS
    960GB: 81,000 IOPS

  • 随机写入速度高达*2

    240GB: 87,000 IOPS
    480GB, 960GB: 88,000 IOPS

  • 耐久性:TBW*3

    240GB: 60 TB
    480GB: 120 TB
    960GB: 240 TB

  • MTTF

    150 万 小时

操作环境和保护性能

  • 运行温度(Tc)

    0 ℃ 至 65 ℃

  • 存储温度

    -40 ℃ 至 85 ℃

  • 抗震

    14.7 km/s2 {1,500 G} 0.5 ms 半正弦波

  • 防抖动

    196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis

  • 工作电压

    5 V ± 5%

  • 功耗 (Active)

    240GB, 480GB: 1.6 W (typ.)
    960GB: 1.7 W (typ.)

  • 功耗 (Idle)

    100 mW (typ.)

  • 功耗 (DevSleep)

    10 mW max

兼容性

  • Serial ATA (SATA)

    ATA/ATAPI Command Set-3 (ACS-3) and Serial ATA revision 3.2 interface specifications supported

  • 接口类型

    Standard SATA Power Connector

  • 目标应用

    個人台式机和笔记本电脑

其他

  • 服务与支持

    3 年质保*4

  • 性能优化

    TRIM, Idle Time Garbage Collection

产品信息

  • 240GB

    PN: LTC10Z240GC8
    EAN: 4582563851870

  • 480GB

    PN: LTC10Z480GC8
    EAN: 4582563851887

  • 960GB

    PN: LTC10Z960GC8
    EAN: 4582563851894

寻找您所在地区的零售商或经销商。

获得最新产品简介、使用说明、安全使用说明、软件等。

铠侠SSD (固态硬盘) 比较表

* Table can be scrolled horizontally.



EXCERIA PRO SSD

EXCERIA PLUS G2 SSD

EXCERIA G2 SSD

EXCERIA SSD

EXCERIA SATA SSD

Target User

Professional

Enthusiast

Mainstream

Mainstream

Upgrader

Capacity

1TB, 2TB

500GB, 1TB, 2TB

500GB, 1TB, 2TB

250GB, 500GB, 1TB

240GB, 480GB, 960GB

Max Sequential Read/Write Speed*1

2TB: 7,300/6,400 MB/s

2TB: 3,400/3,200 MB/s

2TB: 2,100/1,700 MB/s

1TB: 1,700/1,600 MB/s

960GB: 555/540 MB/s

Max Random Read/Write Speed*2

2TB: 800,000/1,300,000 IOPS

2TB: 680,000/620,000 IOPS

2TB: 360,000/400,000 IOPS

1TB: 350,000/400,000 IOPS

960GB: 81,000/88,000 IOPS

Interface

PCIe Gen4 x4 / NVMe™ 1.4

PCIe Gen3 x4 / NVMe™ 1.3c

PCIe Gen3 x4 / NVMe™ 1.3c

PCIe Gen3 x4 / NVMe™ 1.3c

Serial ATA (SATA) 6 Gbit/s

Form Factor

M.2 Type 2280-S2-M

M.2 2280-D3-M

M.2 Type 2280-S2-M

M.2 Type 2280-S2-M

2.5-inch, 7mm height

Endurance (TBW)*3

Up to 800 TB

Up to 800 TB

Up to 800 TB

Up to 400 TB

Up to 240 TB

Warranty Period*4

5 years

5 years

5 years

5 years

3 years

  1. EXCERIA PRO SSD / EXCERIA G2 SSD: Sequential speeds are measured with CrystalDiskMark 8.0.1 x64, Q=32, T=1.
    EXCERIA PLUS G2 SSD / EXCERIA PLUS SSD / EXCERIA SSD: Sequential speeds are measured with CrystalDiskMark 6.0.2 x64, Q=32, T=1.
    EXCERIA SATA SSD: Sequential speeds are measured with ATTO v3.05, QD10.
    These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written.
  2. EXCERIA PRO SSD/ EXCERIA G2 SSD: 4KiB random performance is measured with CrystalDiskMark 8.0.1 x64, Q=32,T=16.
    EXCERIA PLUS G2 SSD / EXCERIA PLUS SSD / EXCERIA SSD: 4KiB random performance is measured with CrystalDiskMark 6.0.2 x64, Q=32,T=8.
    EXCERIA SATA: 4KiB random performance is measured with CrystalDiskMark 5.1.2 x64 QD32.
    These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written.
  3. Definition and conditions of TBW (Terabytes Written) are based on JEDEC standard; JESD219A Solid-State Drive (SSD) Endurance Workloads, July 2012, and defined for the service life.
  4. MANUFACTURER’S WARRANTY IS EFFECTIVE EITHER (I) WARRANTY PERIOD FROM THE DATE OF PURCHASE IN ITS ORIGINAL SEALED PACKAGING OR (II) FOR THE TIME PERIOD UNTIL THE "PERCENTAGE LIFE LEFT" WILL BE ZERO, WHICHEVER IS SHORTER. The "Percentage Life Left" can be found using "Health" gauge of the SSD Utility for KIOXIA products, which is available at "personal.kioxia.com/support/".

Definition of capacity: KIOXIA defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 230 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.

A kibibyte (KiB) means 210, or 1,024 bytes, a mebibyte (MiB) means 220, or 1,048,576 bytes, and a gibibyte (GiB) means 230, or 1,073,741,824 bytes.

IOPS: Input Output Per Second (or the number of I/O operations per second)

MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.

Read and write speed may vary depending on the host device, read and write conditions, and file size.

Subject to Change: While KIOXIA has made every effort at the time of publication to ensure the accuracy of the information provided herein, product specifications, configurations, prices, system/component/options availability are all subject to change without notice.

Product image may represent design model. Images for illustration purpose only. The product appearance may differ from the actual product. Actual number of flash components differs by drive capacity.
