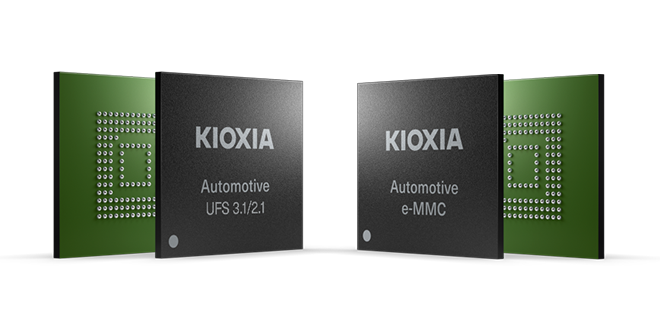

UFS & e-MMC for Automotive

Paving the Road Ahead for the Automotive Applications of the Future

KIOXIA offers a broad density lineup of high-speed UFS and e-MMC memory for automotive applications, and is well positioned to support data storage demands of increasingly complex automotive applications. KIOXIA automotive UFS and e-MMC support a temperature range of -40°C to +105°C, meets AEC-Q100 Grade 2(8) requirements and offers extended reliability required by demanding automotive applications.

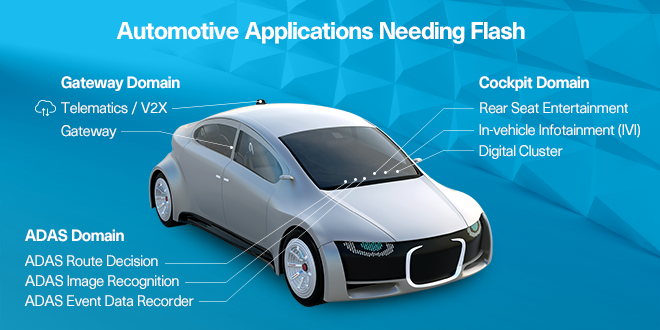

Automotive Functions Require Flash Storage

Next-gen automotive systems are hungry for more. More advanced infotainment and ADAS (advanced driver-assistance system). More storage for event data recording. Support for more 3D mapping. And hungry for entirely new applications and capabilities that take advantage of 5G, IoT and artificial intelligence.

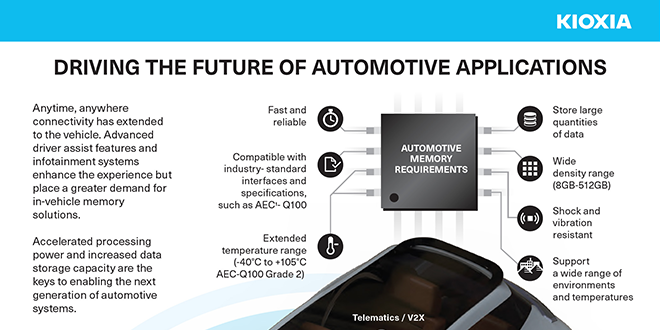

Requirements of Automotive UFS & e-MMC

  • Compliant with IATF16949
  • Meets automotive standards (e.g., AEC-Q100 Stress Test Qual Standard)
  • Supports PPAP (to ensure consistent production of quality parts)
  • Extended Temperature Range (e.g., -40°C to +105°C)
  • Low Failure Rate
  • Extended Product Change Notices (PCNs)
  • Features for automotive (e.g., enhanced solder ball reliability, countermeasures if chip exceeds certain temp, etc.)

Automotive UFS(6)

Available capacities: 32GB, 64GB, 128GB, 256GB and 512GB.

Automotive e-MMC(7)

Available capacities: 8GB, 16GB, 32GB, 64GB, 128GB and 256GB.

The Changing Interface from e-MMC (parallel) to UFS (serial)

UFS was specifically defined by JEDEC to be the high-performance memory replacement for e-MMC. It has become the premiere solution for smartphones, continuing to migrate into automotive and other applications. UFS will ultimately surpass e-MMC as the primary storage solution for automotive applications.

UFS Market Trend

UFS is the faster performance JEDEC standard replacement to e-MMC. Smartphone adopted UFS for its performance advantages. Automotive is doing the same.

Why UFS?

Simply put – it’s the successor to e-MMC. UFS performance will continue to advance, significantly widening its performance advantage over e-MMC.

Compared to e-MMC, UFS Delivers:

  • A faster interface
  • Higher performance for reads and writes
  • Higher density offerings
  • Better power efficiency
  • Support for full duplexing

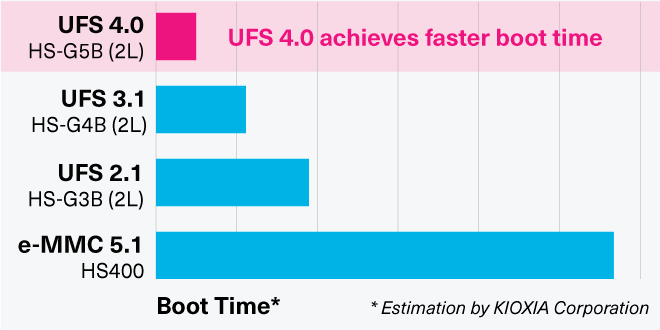

Boot Time Comparison (64MB Data-out)

Faster boot time with a large amount of boot data is a big motivation to use UFS in automotive applications.

UFS has a faster boot time than other storage devices thanks to its high speed sequential read.

Additional Automotive UFS Features Well-Suited for Automotive Reliability

  • Thermal Control: If the device exceeds 105°C, the device slows the performance and notifies the host processor to take action
  • Extended Diagnosis: the UFS controller monitors various items, such as write/erase cycles, current temperature, etc. and reports device status to the host processor
  • Refresh: enables refresh of deteriorated data, improving data reliability.

KIOXIA has led the way in UFS since 2013, being first to sample the technology,
and will continue to pave the road ahead for automotive applications of the future.

Learn and Evaluate

Automotive UFS Specs

AEC-Q100 Grade 2

* 表格可以水平滚动。

Capacity Part Number UFS
version
Max Data Rate
(MB/s)
Supply Voltage Operating
Temperature
(℃) (1)
Package Size
(mm)
VCC
(V)
VCCQ
(V)
VCCQ2
(V)
32GB THGAFBG8T13BAB7(3) 2.1 1160 2.7 to 3.6 (4) 1.70 to 1.95 -40 to 105 11.5x13.0x1.0
THGAFEG8T13BAB7
64GB THGAFBG9T23BAB8(3) 11.5x13.0x1.2
THGAFEG9T23BAB8
128GB THGAFBT0T43BAB8(3)
THGAFET0T43BAB8
256GB THGAFBT1T83BAB5(3) 11.5x13.0x1.3
THGAFET1T83BAB5
64GB THGJFGG9T15BAB8 3.1 2320 2.4 to 2.7,
2.7 to 3.6
1.14 to 1.26 (5) -40 to 105 11.5x13.0x1.2
128GB THGJFGT0T25BAB8
256GB THGJFGT1T45BAB8
512GB THGJFGT2T85BAB5 11.5x13.0x1.3

AEC-Q100 Grade 3

* 表格可以水平滚动。

Capacity Part Number UFS
version
Max Data Rate
(MB/s)
Supply Voltage Operating
Temperature
(℃) (2)
Package Size
(mm)
VCC
(V)
VCCQ
(V)
VCCQ2
(V)
64GB THGJFGG9T15BAA8 3.1 2320 2.4 to 2.7,
2.7 to 3.6
1.14 to 1.26 (5) -40 to 85 11.5x13.0x1.2
128GB THGJFGT0T25BAA8
256GB THGJFGT1T45BAA8
512GB THGJFGT2T85BAA5 11.5x13.0x1.3

Automotive e-MMC Specs

AEC-Q100 Grade2

* 表格可以水平滚动。

Capacity Part Number e-MMC
version
Max Data Rate
(MB/s)
Supply Voltage Operating
Temperature
(℃) (1)
Package Size
(mm)
VCC
(V)
VCCQ
(V)
8GB THGBMJG6C1LBAC7 5.1 400 2.7 to 3.6 1.70 to 1.95,
2.7 to 3.6
-40 to 105 11.5x13.0x1.0
16GB THGBMJG7C2LBAC8 11.5x13.0x1.2
32GB THGBMJG8C4LBAC8
64GB THGBMJG9C8LBAC8
32GB THGAMVG8T13BAB7 1.70 to 1.95 11.5x13.0x1.0
64GB THGAMVG9T23BAB8 11.5x13.0x1.2
128GB THGAMVT0T43BAB8
256GB THGAMVT1T83BAB5 11.5x13.0x1.3

AEC-Q100 Grade3

* 表格可以水平滚动。

Capacity Part Number e-MMC
version
Max Data Rate
(MB/s)
Supply Voltage Operating
Temperature
(℃)
Package Size
(mm)
VCC
(V)
VCCQ
(V)
32GB THGAMVG8T13BAA7 5.1 400 2.7 to 3.6 1.70 to 1.95 -40 to 85 11.5x13.0x1.0
64GB THGAMVG9T23BAA8 11.5x13.0x1.2
128GB THGAMVT0T43BAA8
256GB THGAMVT1T83BAA5 11.5x13.0x1.3
  1. Tc=115℃ max.
  2. Tc=95℃ max.
  3. Maximum pre-load capacity is limited to about 25% of the user area capacity.
  4. This product supports dual-supply operation at VCC and VCCQ2. VCCQ need not be supplied.
  5. This product supports dual-supply operation at VCC and VCCQ. VCCQ2 need not be supplied.
  6. Universal Flash Storage (UFS) is a product category for a class of embedded memory products built to the JEDEC UFS standard specification.
  7. e-MMC is a product category for a class of embedded memory products built to the JEDEC e-MMC Standard specification.
  8. Electrical component qualification requirements defined by the AEC (Automotive Electronics Council).
