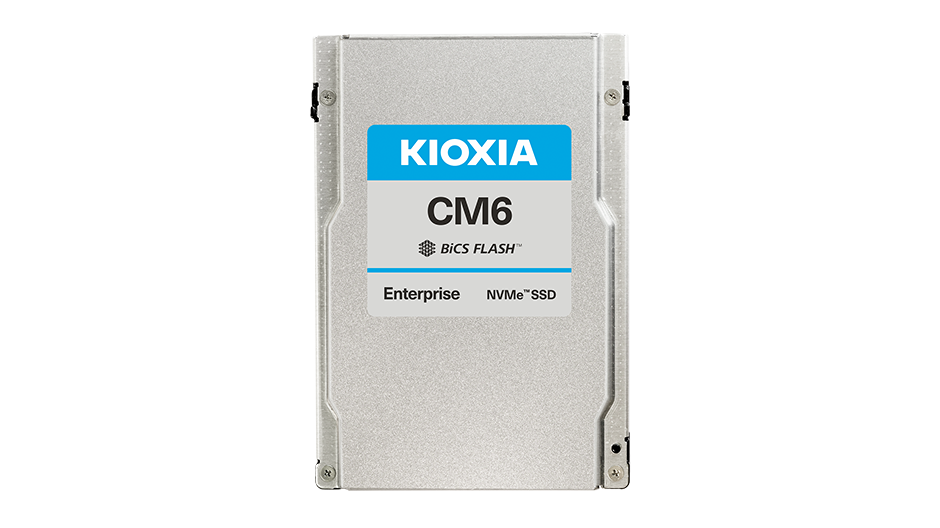

KIOXIA CM6-V Series (2.5-inch)
Enterprise NVMe™ Mixed Use SSD
KIOXIA CM6-V series is a mixed use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe® 4.0 and NVMe™1.4 technology, the CM6 Series SSDs deliver excellent performance up to 1.4M IOPS (random read) and 350K IOPS (random write), with maximum power consumption of 25 W.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASH™ 3D TLC memory, the CM6-V Series of enterprise NVMe™ SSDs delivers 3 DWPD (Drive Writes Per Day) of endurance and supports storage capacities up to 12.8 TB, making them ideally suited for read and write mixed-use enterprise applications.
Documents
Key Features
- PCIe® 4.0, NVMe™ 1.4 specification compliant
- Form factor: 2.5-inch, 15mm Z-height
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 96-layer 3D TLC memory
- SFF-TA-1001 conformant (U.3)
- Dual-port design for high availability applications
- 6th generation, two-die failure recovery and double parity protection
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Suited for 24x7 enterprise workloads
- Security options: SIE, SED, FIPS 140-2[1,2,3,4,5]
- Six power mode settings
Key Applications
- Data warehousing
- Online transaction processing (OLTP)
(transactional and relational databases) - Business intelligence
- Artificial intelligence and machine learning
Specifications
* 表格可以水平滚动。
Base Model Number | KCM61VUL12T8 | KCM61VUL6T40 | KCM61VUL3T20 | KCM61VUL1T60 | KCM61VUL800G |
---|---|---|---|---|---|
SIE Model Number | KCM6XVUL12T8 | KCM6XVUL6T40 | KCM6XVUL3T20 | KCM6XVUL1T60 | KCM6XVUL800G |
SED Model Number | KCM6DVUL12T8 | KCM6DVUL6T40 | KCM6DVUL3T20 | KCM6DVUL1T60 | KCM6DVUL800G |
FIPS SED Model Number | KCM6FVUL12T8 | KCM6FVUL6T40 | KCM6FVUL3T20 | KCM6FVUL1T60 | KCM6FVUL800G |
Capacity | 12,800 GB | 6,400 GB | 3,200 GB | 1,600 GB | 800 GB |
Basic Specifications | |||||
Form Factor | 2.5-inch, 15mm thickness | ||||
lnterface | PCIe® 4.0, NVMe™ 1.4 | ||||
Maximum Interface Speed | 64 GT/s (PCIe® Gen4 single x4, dual x2) | ||||
Flash Memory Type | BiCS FLASH™ TLC | ||||
Performance (Up to) | |||||
Sustained 128 KiB Sequential Read | 6,900 MB/s | ||||
Sustained 128 KiB Sequential Write | 4,000 MB/s | 4,200 MB/s | 2,800 MB/s | 1,400 MB/s | |
Sustained 4 KiB Random Read | 1,400K IOPS | 1,300K IOPS | 880K IOPS | ||
Sustained 4 KiB Random Write | 325K IOPS | 350K IOPS | 215K IOPS | 100K IOPS | |
Power Requirements | |||||
Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % | ||||
Power Consumption (Active) | 21 W typ. | 20 W typ. | 19 W typ. | 16 W typ. | 14 W typ. |
Power Consumption (Ready) | 5 W typ. | ||||
Reliability | |||||
MTTF | 2,500,000 hours | ||||
Warranty | 5 years | ||||
DWPD | 3 | ||||
Dimensions | |||||
Thickness | 15.0 mm +0 / -0.5 mm | ||||
Width | 69.85 mm ± 0.25 mm | ||||
Length | 100.45 mm Max | ||||
Weight | 130 g Max | ||||
Environmental | |||||
Temperature (Operating) | 0 ℃ to 70 ℃ | ||||
Temperature (Non-operating) | -40 ℃ to 85 ℃ | ||||
Humidity (Operating) | 5 % to 95 % R.H. | ||||
Vibration (Operating) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | ||||
Shock (Operating) | 9.8 km/s2 { 1,000 G } ( 0.5 ms ) |
- Product image may represent a design model.
- Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- GT/s: Giga Transfers per second.
- A kibibyte (KiB) means 2^10, or 1,024 bytes.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
- Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- [1] Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED) and FIPS (Federal Information Processing Standards) SED security optional models are available.
- [2] SIE optional model supports Crypto Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
- [3] SED optional model supports TCG Opal and Ruby SSCs. It has a few unsupported features of TCG Opal SSC. For more details, please make inquiries through “Contact us”.
- [4] FIPS SED optional model utilizes a security module designed to comply with FIPS 140-2 and FIPS 140-3, which define security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through “Contact us”.
- [5] Security optional models are not available in all countries due to export and local regulations.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
