铠侠LC9系列（E3.L）
-
/
-
企业级NVMe™大容量固态硬盘
铠侠LC9系列是一款大容量固态硬盘，非常适用于支持AI系统中的训练、推理及数据湖存储仓库。
铠侠LC9系列（E3.L）采用铠侠公司第八代BiCS FLASH™ QLC闪存，支持245.76TB，为LC9系列中最大容量。它通过提升存储密度，实现高效功耗与基础设施空间管理，缩小物理占用空间，并降低总体拥有成本（TCO）。
基于PCIe® 5.0和NVMe™ 2.0技术，LC9系列固态硬盘提供高达12,000 MB/s（顺序读取）和1,000 KIOPS（随机读取）的稳定读取性能。
相关文档
主要特性
- 符合PCIe® 5.0、NVMe™ 2.0规范
- 支持Open Compute Project Datacenter NVMe™ SSD规范v2.5（非全部要求）
- 形态规格 E3.L，7.5 mm 厚度
- 采用第八代BiCS FLASH™ QLC闪存
- 专有铠侠架构：控制器、固件及BiCS FLASH™技术
- 面向高可用性应用优化的双端口设计
- 断电保护（PLP）与端到端数据保护
- 适用于7×24小时企业级工作负载
- 安全选项：SIE、SED、FIPS SED[1][2][3][4][5]
- SED可选TCG Opal 2.02
关键应用
- 数据湖
- AI 系统
- 机器学习应用
- 横向扩展存储
规格
* 表格可以水平滚动。
| SIE Model Number | RLC9CZV245T |
|---|---|
| SED Model Number | RLC9EZV245T |
| FIPS SED Model Number | RLC9GZV245T |
| Capacity | 245.76 TB |
| IU Size | 16 KiB |
| Basic Specifications | |
| Form Factor | E3.L |
| lnterface | PCIe® 5.0, NVMe™ 2.0 |
| Maximum Interface Speed | 128 GT/s (PCIe® Gen5 single x4, dual x2) |
| Flash Memory Type | BiCS FLASH™ QLC |
| Performance (Up to) | |
| Sustained 128 KiB Sequential Read | 12,000 MB/s |
| Sustained 128 KiB Sequential Write | 3,500 MB/s |
| Sustained 4 KiB Random Read | 1,000 KIOPS |
| Sustained Random Write | 45 KIOPS @ 16 KiB |
| Power Requirements | |
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % |
| Power Consumption (Active) | 30 W typ. |
| Power Consumption (Ready) | 5 W typ. |
| Reliability | |
| MTTF | 2,500,000 hours @ 0 ℃ to 50 ℃ 2,000,000 hours @ 0 ℃ to 55 ℃ |
| Warranty | 5 years |
| DWPD | 0.075 @ 4 KiB 0.3 @ 16 KiB |
| Dimensions | |
| Thickness | 7.5 mm +0.2 / -0.5 mm |
| Width | 76 mm ± 0.25 mm |
| Length | 142.2 ｍｍ ± 0.4 mm |
| Weight | 160 g Max |
| Environmental | |
| Temperature (Operating) | 0 °C to 75 °C |
| Temperature (Non-operating) | -40 °C to 85 °C |
| Humidity (Operating) | 5 % to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s2 { 2.17 Grms } ( 5 Hz to 800 Hz ) |
| Shock (Operating) | 9.8 km/s2 { 1,000 G } ( 0.5 ms ) |

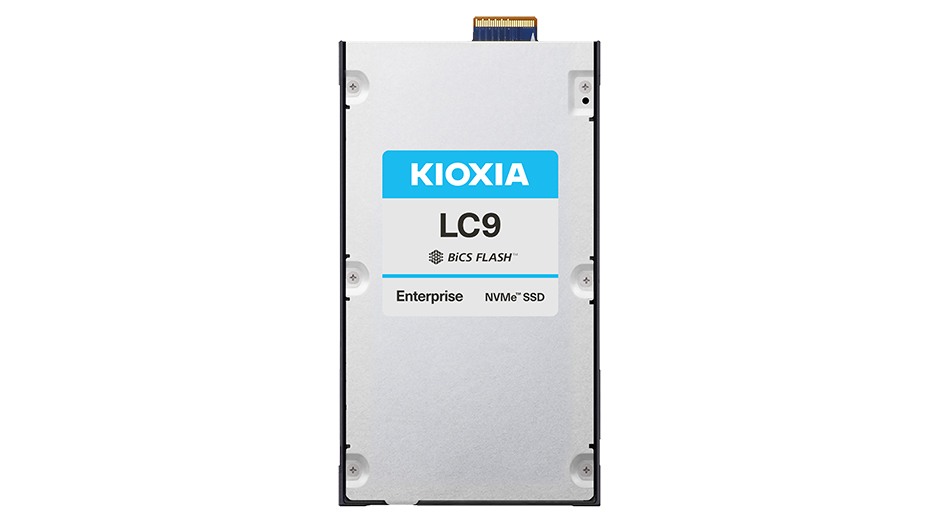

- Product image may represent a design model.
- Definition of capacity: Kioxia Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- IU Size: Indirection Unit Size. It is the minimum unit size of the FTL mapping table to manage user data on NAND flash memory.
- GT/s: Giga Transfers per second.
- A kibibyte (KiB) means 2^10, or 1,024 bytes.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day under the specified workload for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
- Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
- Random write performance is based on the workload of random writes with the defined IU size for each model.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- Temperature (operating): Specified by the composite temperature reported by SMART.
- [1] Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED) and FIPS (Federal Information Processing Standards) SED security optional models are available.
- [2] SIE optional model supports Cryptographic Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
- [3] SED optional model supports TCG Opal and Ruby SSCs. It has a few unsupported features of TCG Opal SSC. For more details, please make inquiries through “Contact us”.
- [4] FIPS SED optional model utilizes a security module designed to comply with FIPS 140-3, which defines security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through “Contact us”.
- [5] Security optional models are not available in all countries due to export and local regulations.
- All information provided here is subject to change without prior notice.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
