铠侠 BG7 系列（M.2）
-
/
-
消费端 NVMe™ SSD
铠侠BG7系列是一款采用紧凑外形规格的NVMe™固态硬盘，其单盘容量最高可达2,048 GB。它基于PCIe® 4.0接口并符合NVMe™ 2.0d规范，同时搭载了铠侠第八代BiCS FLASH™ TLC闪存技术*。该系列系列固态硬盘凭借更高的带宽、改进的闪存管理以及主机内存缓冲（HMB）技术，实现了紧凑外形固态硬盘中的极高读取性能，其顺序读取速度最高可达7,000 MB/s，随机读取性能最高可达1,000K IOPS 。
铠侠BG7系列固态硬盘提供 256 GB、512 GB、1,024 GB 和 2,048 GB 四种容量选项，并支持 M.2 2230、2242 和 2280 三种模块规格，使其非常适合超薄笔记本、AI PC 等轻薄型系统设计 。BG7 系列还提供了支持 TCG Opal 2.01 标准的自加密硬盘（SED）型号选项，以增强数据安全性 。
- 256 GB 容量的 BG7 系列固态硬盘采用的是第六代铠侠 BiCS FLASH™ TLC 闪存 。
相关文档
主要特性
- 第八代铠侠 BiCS FLASH™ TLC 闪存（256 GB 容量型号使用第六代铠侠 BiCS FLASH™ TLC 闪存）
- 符合 PCIe® 4.0 和 NVMe™ 2.0d 规范
- 容量高达 2,048 GB
- M.2 2230、2242 和 2280 单面外形规格
- TCG Opal 2.01 SED 选项
关键应用
- 超便携PC
- AI PC
- 二合一笔记本电脑
规格
* 表格可以水平滚动。

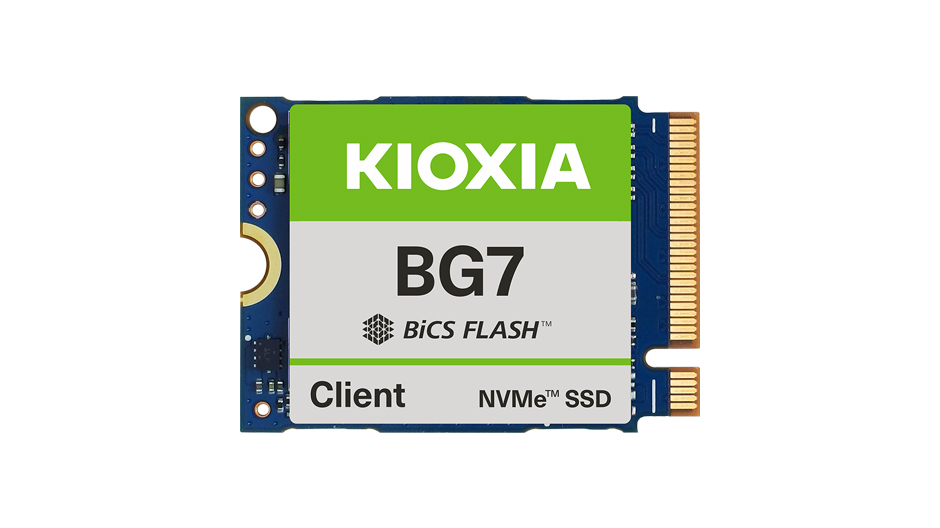

| Base Model Number | KBG70ZNS2T04 | KBG70ZNS1T02 | KBG70ZNS512G | KBG70ZNS256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNS2T04 | KBG7BZNS1T02 | KBG7BZNS512G | KBG7BZNS256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2230-S3 Single-sided | M.2 2230-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 30 ｍｍ ± 0.15 mm | |||
| Weight | 3.2 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||
* 表格可以水平滚动。

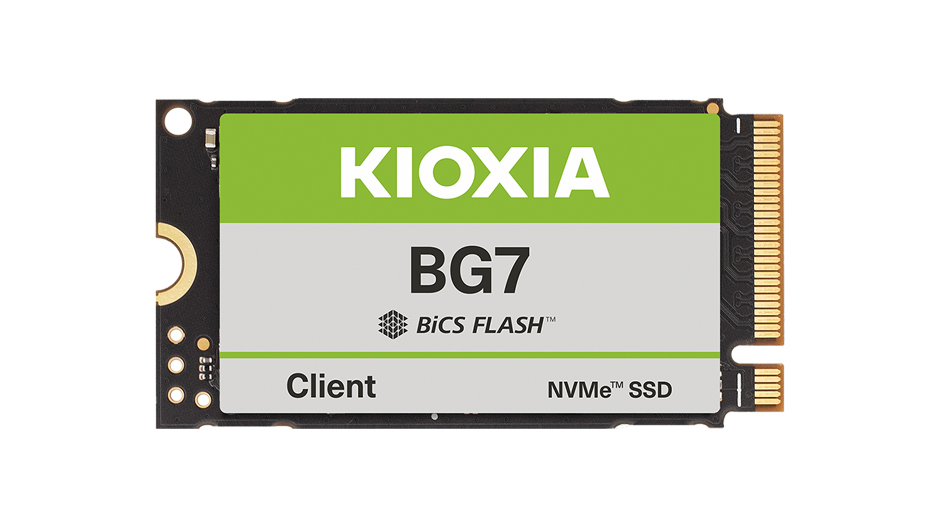

| Base Model Number | KBG70ZNT2T04 | KBG70ZNT1T02 | KBG70ZNT512G | KBG70ZNT256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNT2T04 | KBG7BZNT1T02 | KBG7BZNT512G | KBG7BZNT256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2242-S3 Single-sided | M.2 2242-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 42 ｍｍ ± 0.15 mm | |||
| Weight | 3.8 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||
* 表格可以水平滚动。

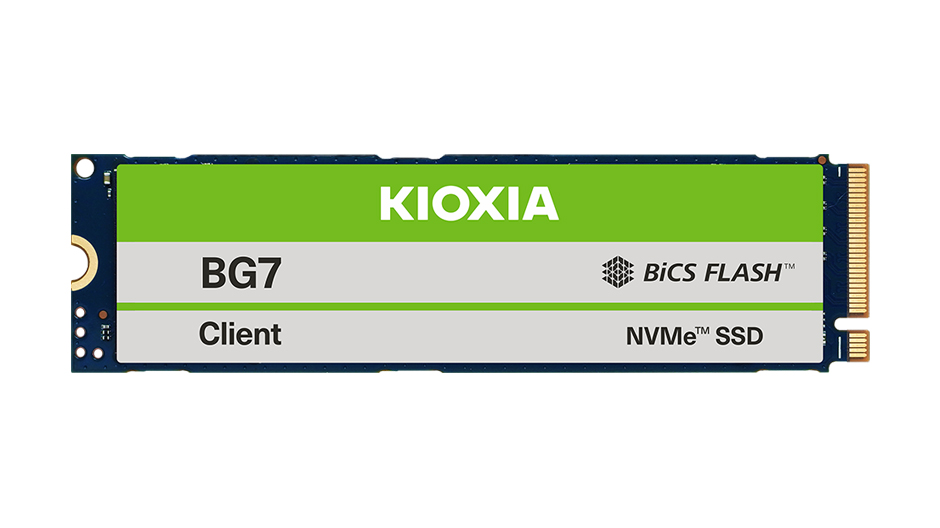

| Base Model Number | KBG70ZNV2T04 | KBG70ZNV1T02 | KBG70ZNV512G | KBG70ZNV256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNV2T04 | KBG7BZNV1T02 | KBG7BZNV512G | KBG7BZNV256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2280-S3 Single-sided | M.2 2280-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 80 ｍｍ ± 0.15 mm | |||
| Weight | 6.3 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||
- Product image may represent a design model.
- Availability of the SED model line-up may vary by region.
- Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- TBW: Terabytes Written. The number of terabytes that may be written to the SSD for the specified lifetime.
- Read and write speed, tested on the state of "Host Memory Buffer (HMB) = On", may vary depending on the host device, read and write conditions, and file size.
- Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
- All information provided here is subject to change without prior notice.
