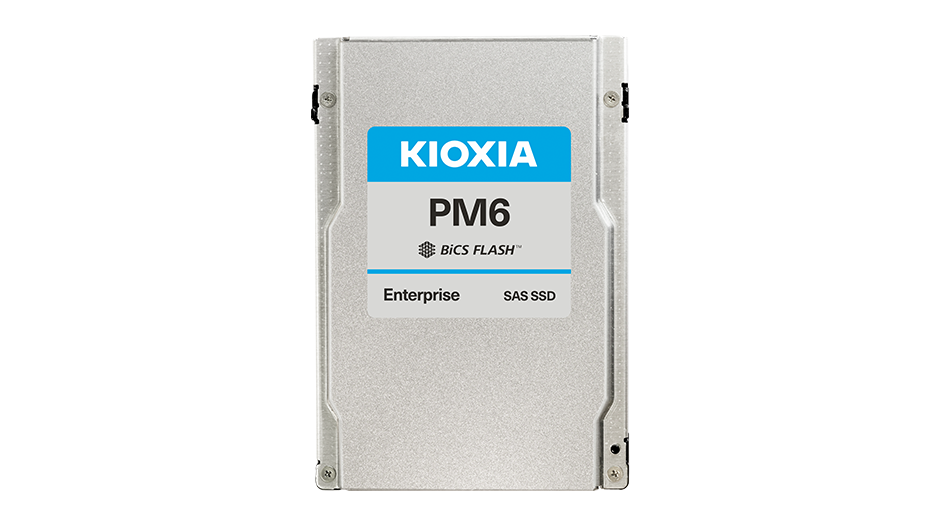

Image of pm6-r_001

Enterprise SAS Read Intensive SSD

KIOXIA PM6-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA Corporation’s 96-layer BiCS FLASHTM 3D flash memory, this 6th generation enterprise SAS SSD PM6-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

Documents

Key Features

  • 24G SAS interface with single/dual-port support
  • Capacities from 960 GB to 30.72 TB
  • Up to 595K random read IOPS (4 KiB) in dual port mode
  • 2.5-inch form factor, 15 mm thickness
  • 1 DWPD with 100 % Random Write Workload
  • Power Loss Protection and End-to-End Data Protection, including T10 DIF
  • Security options: SIE, SED, FIPS SED[1][2][3][4][5]
  • 5-year limited warranty

Key Applications

  • Data warehousing
  • Streaming media
  • Video on demand (VOD)
  • Web servers

Specifications

* 表格可以水平滚动。

Base Model NumberKPM61RUG30T7KPM61RUG15T3KPM61RUG7T68KPM61RUG3T84KPM61RUG1T92KPM61RUG960G
SIE Model NumberKPM6XRUG30T7KPM6XRUG15T3KPM6XRUG7T68KPM6XRUG3T84KPM6XRUG1T92KPM6XRUG960G
SED Model NumberKPM6VRUG30T7KPM6VRUG15T3KPM6VRUG7T68KPM6VRUG3T84KPM6VRUG1T92KPM6VRUG960G
FIPS SED Model NumberKPM6WRUG30T7KPM6WRUG15T3KPM6WRUG7T68KPM6WRUG3T84KPM6WRUG1T92KPM6WRUG960G
Capacity30,720 GB15,360 GB7,680 GB3,840 GB1,920 GB960 GB
Basic Specifications
Form Factor2.5-inch, 15mm thickness
lnterfaceSAS-4
lnterface Speed22.5 Gbit/s, 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s
Flash Memory TypeBiCS FLASH™ TLC
Performance (Up to)
Sustained 128 KiB Sequential Read4,150 MB/s
Sustained 128 KiB Sequential Write3,200 MB/s3,700 MB/s2,450 MB/s2,700 MB/s1,450 MB/s
Sustained 4 KiB Random Read595K IOPS
Sustained 4 KiB Random Write80K IOPS160K IOPS155K IOPS115K IOPS125K IOPS75K IOPS
Power Requirements
Supply Voltage12 V ± 10 %, 5 V +10 % / -7 %
Power Consumption (Ready)5 W typ.
Reliability
MTTF2,500,000 hours
Warranty5 years
DWPD1
Dimensions
Thickness15.0 mm +0 / -0.5 mm
Width69.85 mm ± 0.25 mm
Length100.45 mm Max
Weight150 g Max130 g Max
Environmental
Temperature (Operating)0 °C to 70 °C
Temperature (Non-operating)-40 °C to 80 °C
Humidity (Operating)5 % to 95 % R.H.
Vibration (Operating)21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz )
Shock (Operating)9.8 km/s2 { 1,000 G } ( 0.5 ms )
  • Product image may represent a design model.
  • Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
  • GT/s: Giga Transfers per second.
  • A kibibyte (KiB) means 2^10, or 1,024 bytes.
  • MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
  • DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
  • Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
  • IOPS: Input Output Per Second (or the number of I/O operations per second).
  • [1] Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED) and FIPS (Federal Information Processing Standards) SED security optional models are available.
  • [2] SIE optional model supports Crypto Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
  • [3] SED optional model supports TCG Enterprise SSC.
  • [4] FIPS SED optional model utilizes a security module designed to comply with FIPS 140-2 and FIPS 140-3, which define security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through “Contact us”.
  • [5] Security optional models are not available in all countries due to export and local regulations.
  • Other company names, product names, and service names may be trademarks of third-party companies.
