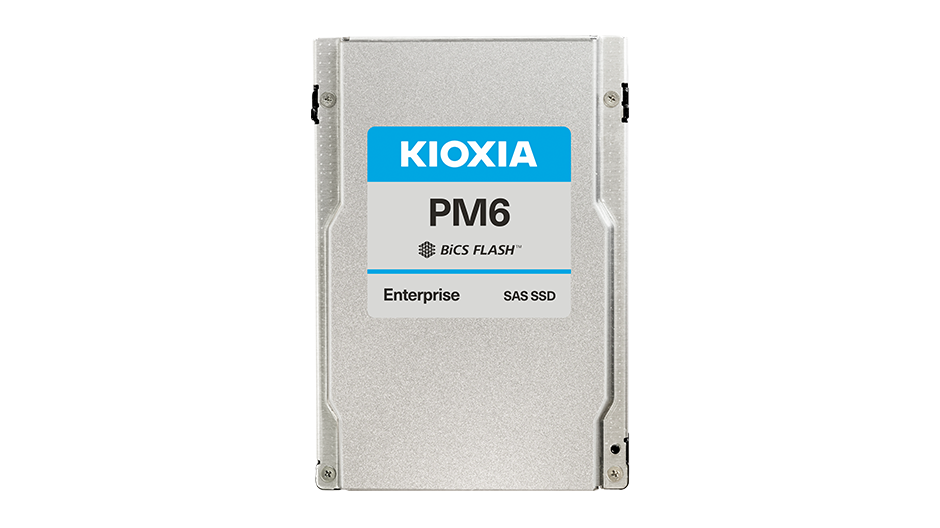

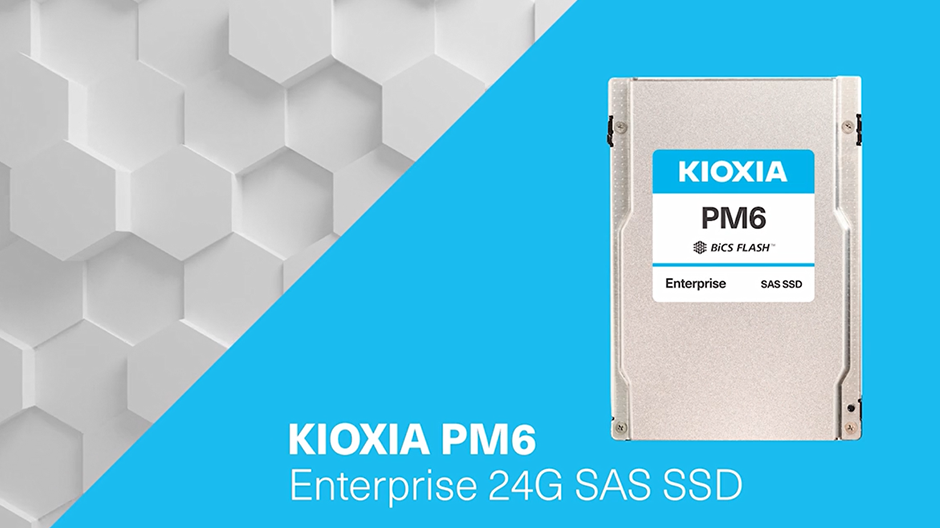

KIOXIA PM6-M Series (2.5 inch)
Enterprise SAS Write Intensive SSD
KIOXIA PM6-M Series 24G SAS Enterprise SSD is optimized for write-intensive applications, including online transaction processing (OLTP) and e-commerce. The series is designed to deliver high levels of performance, quality and reliability for mission critical, hyperscale and virtualized environments.
Featuring KIOXIA Corporation’s 96-layer BiCS FLASH™ 3D flash memory, this 6th generation enterprise SAS SSD PM6-M Series offers 10 DWPD (Drive Writes Per Day) with capacities up to 3.2 TB.
Documents
Key Features
- 24G SAS interface with single/dual-port support
- Capacities from 400 GB to 3.2 TB
- Up to 595K random read IOPS (4 KiB) in dual port mode
- 2.5-inch form factor, 15 mm thickness
- 10 DWPD with 100 % Random Write Workload
- Power Loss Protection and End-to-End Data Protection, including T10 DIF
- Security options: SIE, SED, FIPS SED[1][2][3][4][5]
- 5-year limited warranty
Key Applications
- Mission critical enterprise workloads
- Hyperscale and virtualized environments
- Online transaction processing (OLTP)
- E-commerce
Specifications
* 表格可以水平滚动。
Base Model Number | KPM61MUG3T20 | KPM61MUG1T60 | KPM61MUG800G | KPM61MUG400G |
---|---|---|---|---|
SIE Model Number | KPM6XMUG3T20 | KPM6XMUG1T60 | KPM6XMUG800G | KPM6XMUG400G |
SED Model Number | KPM6VMUG3T20 | KPM6VMUG1T60 | KPM6VMUG800G | KPM6VMUG400G |
FIPS SED Model Number | KPM6WMUG3T20 | KPM6WMUG1T60 | KPM6WMUG800G | KPM6WMUG400G |
Capacity | 3,200 GB | 1,600 GB | 800 GB | 400 GB |
Basic Specifications | ||||
Form Factor | 2.5-inch, 15mm thickness | |||
lnterface | SAS-4 | |||
lnterface Speed | 22.5 Gbit/s, 12.0 Gbit/s, 6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s | |||
Flash Memory Type | BiCS FLASH™ TLC | |||
Performance (Up to) | ||||
Sustained 128 KiB Sequential Read | 4,150 MB/s | |||
Sustained 128 KiB Sequential Write | 3,700 MB/s | 2,450 MB/s | 2,700 MB/s | 1,450 MB/s |
Sustained 4 KiB Random Read | 595K IOPS | |||
Sustained 4 KiB Random Write | 460K IOPS | 452K IOPS | 466K IOPS | 300K IOPS |
Power Requirements | ||||
Supply Voltage | 12 V ± 10 %, 5 V +10 % / -7 % | |||
Power Consumption (Ready) | 5 W typ. | |||
Reliability | ||||
MTTF | 2,500,000 hours | |||
Warranty | 5 years | |||
DWPD | 10 | |||
Dimensions | ||||
Thickness | 15.0 mm +0 / -0.5 mm | |||
Width | 69.85 mm ± 0.25 mm | |||
Length | 100.45 mm Max | |||
Weight | 130 g Max | |||
Environmental | ||||
Temperature (Operating) | 0 °C to 70 °C | |||
Temperature (Non-operating) | -40 °C to 80 °C | |||
Humidity (Operating) | 5 % to 95 % R.H. | |||
Vibration (Operating) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | |||
Shock (Operating) | 9.8 km/s2 { 1,000 G } ( 0.5 ms ) |
- Product image may represent a design model.
- Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- GT/s: Giga Transfers per second.
- A kibibyte (KiB) means 2^10, or 1,024 bytes.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
- Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- [1] Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED) and FIPS (Federal Information Processing Standards) SED security optional models are available.
- [2] SIE optional model supports Crypto Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
- [3] SED optional model supports TCG Enterprise SSC.
- [4] FIPS SED optional model utilizes a security module designed to comply with FIPS 140-2 and FIPS 140-3, which define security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through “Contact us”.
- [5] Security optional models are not available in all countries due to export and local regulations.
- Other company names, product names, and service names may be trademarks of third-party companies.
