铠侠EG7系列（M.2）
-
/
-
消费级 NVMe™ SSD
铠侠EG7系列是一系列采用紧凑外形规格的NVMe™固态硬盘，单盘容量最高可达2,048 GB。它采用符合PCIe® 4.0、NVMe™ 2.0d规范的接口，并搭载铠侠BiCS FLASH™第八代QLC闪存。凭借更高带宽、改进的闪存管理以及主机内存缓冲（HMB）技术，EG7系列固态硬盘实现了最高可达7,000 MB/s（顺序读取）和最高可达1,000K IOPS（随机读取）的读取性能。

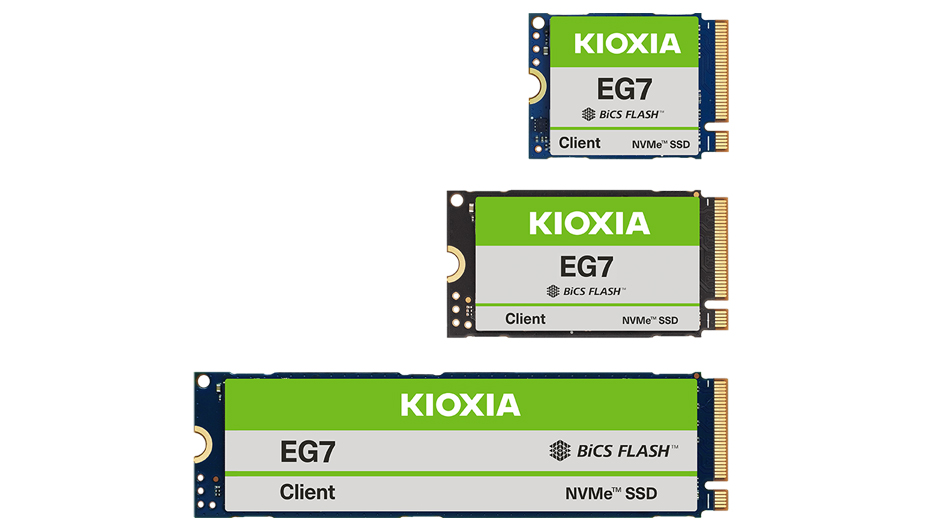

铠侠EG7系列固态硬盘提供512 GB、1,024 GB和2,048 GB容量选项，有M.2 Type 2230、Type 2242和Type 2280模块外形规格可选，适用于轻薄且注重性价比的系统设计，如超薄PC。EG7系列提供自加密硬盘（SED）型号选项，支持TCG Opal 2.02。
主要特性
- 采用第八代铠侠BiCS FLASH™ QLC闪存
- 符合PCIe® 4.0、NVMe™ 2.0d规范
- 容量最高可达2,048 GB

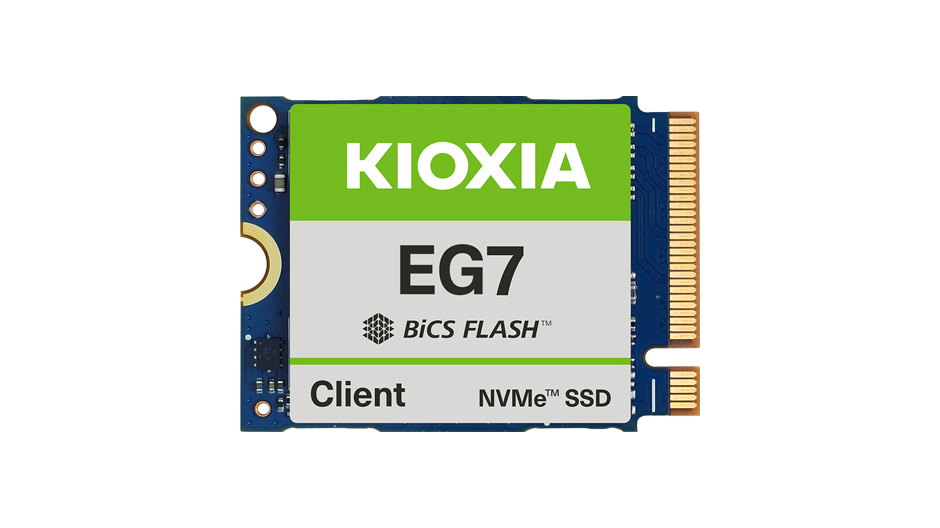

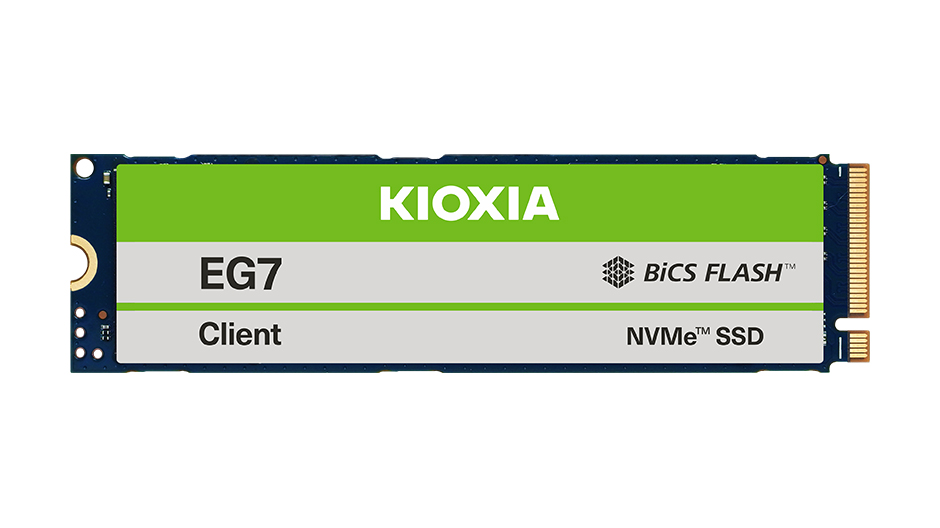

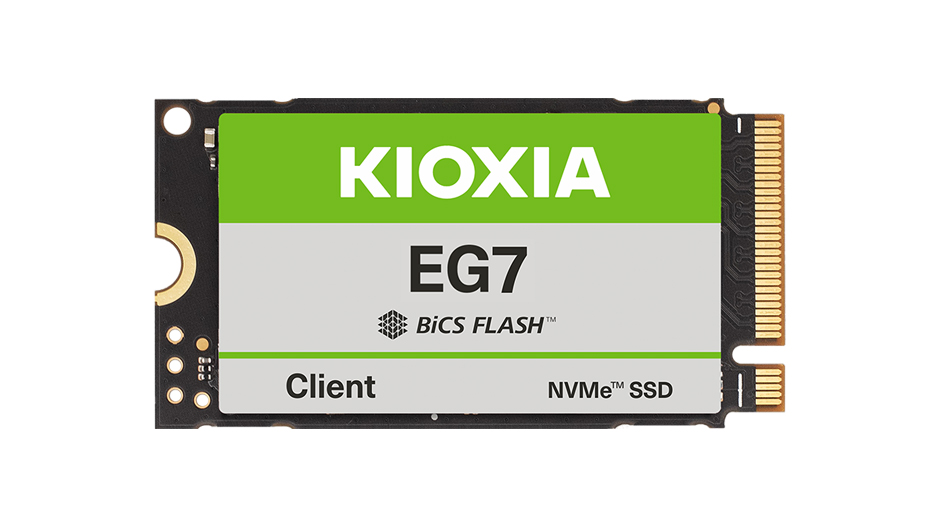

- M.2 Type 2230、Type 2242和Type 2280单面外形规格
- TCG Opal 2.02 SED选项
关键应用
- 超便携PC
- 二合一笔记本PC
- 台式PC
* 表格可以水平滚动。
- Product image may represent a design model.
- Availability of the SED model line-up may vary by region.
- Definition of capacity: Kioxia Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- Read and write speed, tested on the state of "Host Memory Buffer (HMB) = On", may vary depending on the host device, read and write conditions, and file size.
- Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
- All information provided here is subject to change without prior notice.
