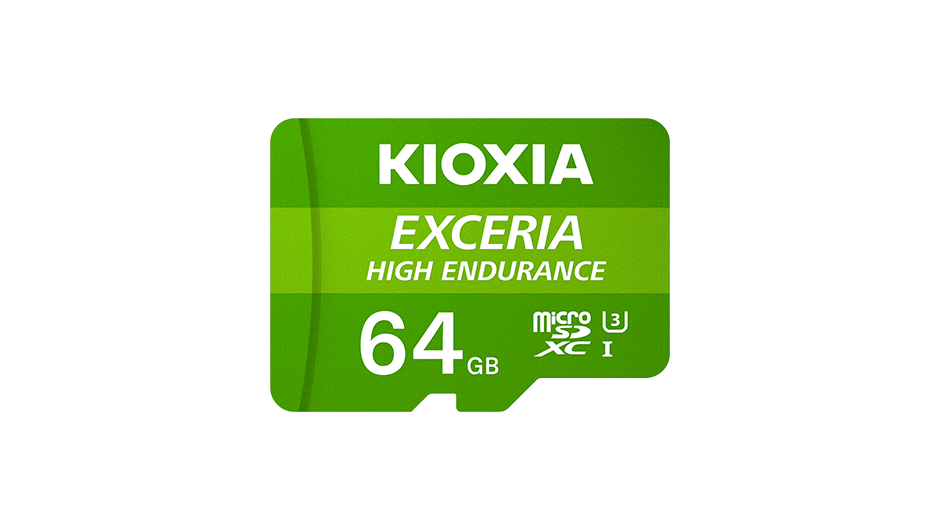

EXCERIA™ HIGH ENDURANCE 高度耐用 microSD存储卡

持久储存

Image of exceria-high-endurance_001
Image of exceria-high-endurance_002
Image of exceria-high-endurance_003
Image of exceria-high-endurance_004
Image of exceria-high-endurance_005
Image of exceria-high-endurance_006
Image of exceria-high-endurance_007
Image of exceria-high-endurance_008

如何购买

该存储卡的256GB容量可以进行长达40,000小时的Full HD影片录制。此系列的最高容量512GB可进行长达17,000小时的4K影片录制。其高耐久性专为监控摄影机及行车记录仪设计,适合连续写入和重复写入,降低了影片录制失败的概率。
EXCERIA高度耐用microSD存储卡采用了BiCS FLASH™ 3D闪存并具有严格的品质控管,向您提供安心又实惠的选择。

特性

High Endurance
High Endurance 帮助模态窗口
Shock Proof
Shock Proof 帮助模态窗口
X-ray Proof
X-ray Proof 帮助模态窗口
Temperature Durability
Temperature Durability 帮助模态窗口
ESD Immunity
ESD Immunity 帮助模态窗口
 Overheating/Ignition Prevention
Overheating/Ignition Prevention 帮助模态窗口

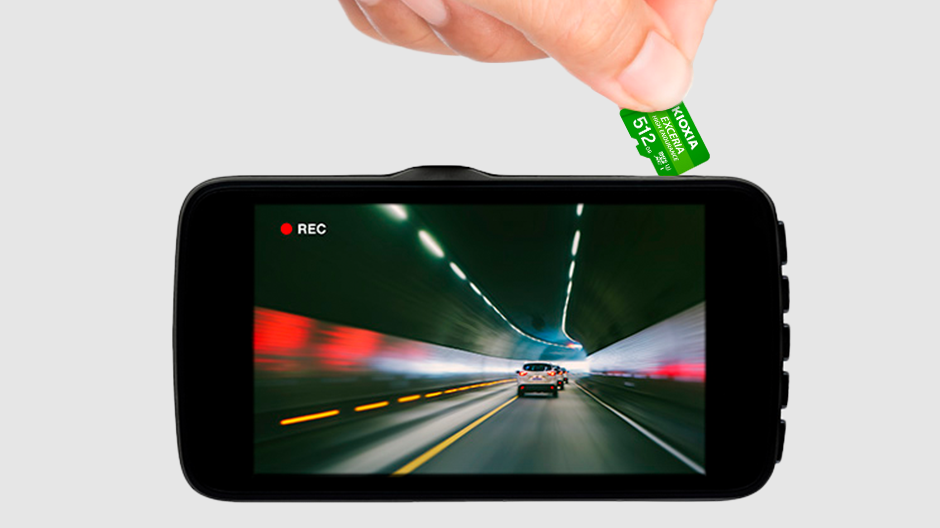

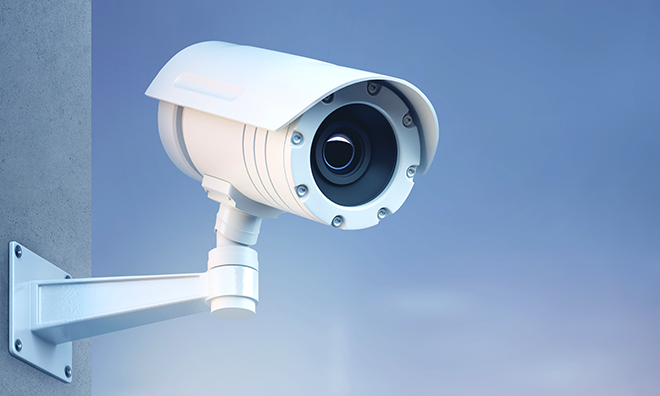

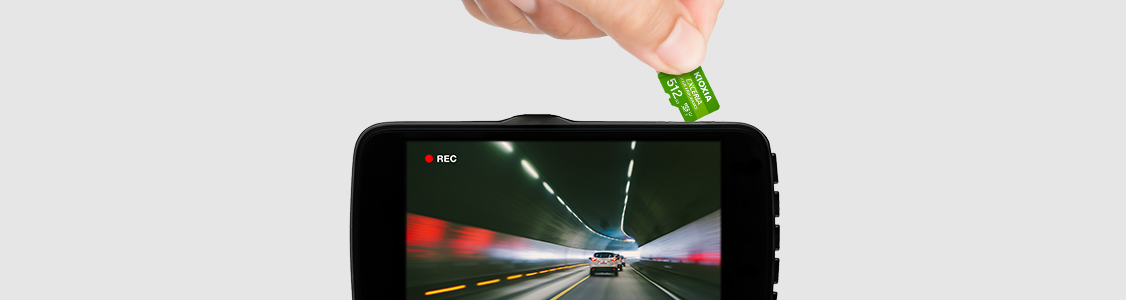

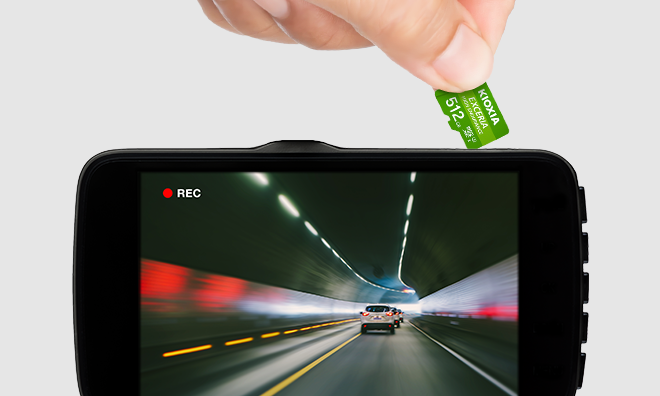

监控摄像头和行车记录仪记录的耐久性

EXCERIA高度耐用microSD存储卡的规格是为监控摄像头和行车记录仪的连续记录而设计的。通过将BiCS FLASH™与严格的质量控制相结合,此功能降低了视频录制失败的可能性。

支持长时间拍摄的大容量设计

EXCERIA高度耐用microSD存储卡microSD存储卡的容量高达512GB ,可存储约 10 小時 29 分钟 4K 影片。

高速捕捉图像

在512GB的容量下,读取速度高达100MB/s,写入速度高达85MB/s*1,使相机能够捕捉到更惊喜的画面。

预估拍摄图片张数及视频录制时间 [分钟]

视频(分钟)*

* 表格可以水平滚动。

容量

HD(12Mbps)

HD(17Mbps)

Full HD(21Mbps)

4K(100Mbps)

512GB

5,240

3,700

2,990

629

256GB

2,620

1,850

1,490

314

128GB

1,310

920

740

157

64GB

650

460

370

78

32GB

320

230

180

39

  • 录制时间:实际录制时间会因您的设备、分辨率和压缩率而异。计算为 1 Mbps = 1,000,000 bps。

EXCERIA HIGH ENDURANCE高度耐用microSD存储卡产品规格

容量和尺寸

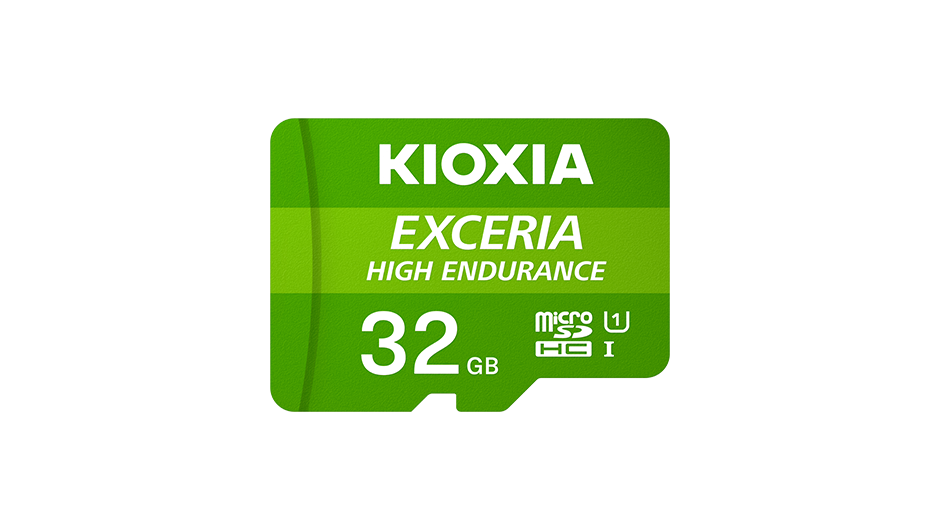

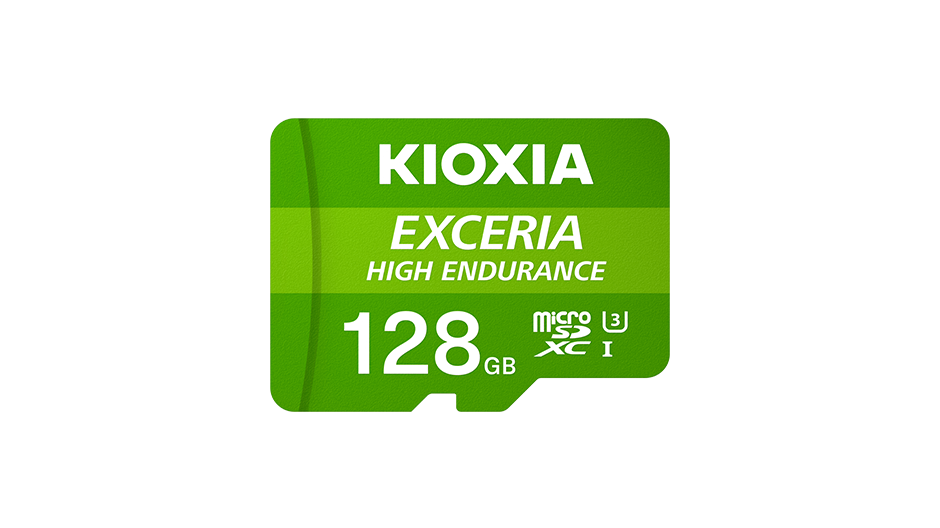

  • 容量

    32GB (microSDHC), 64GB, 128GB, 256GB, 512GB (microSDXC)

  • 用户可用容量*2

    28.8GB, 57.6GB, 115.2GB, 230.4GB, 460.8GB

  • 接口

    UHS-I

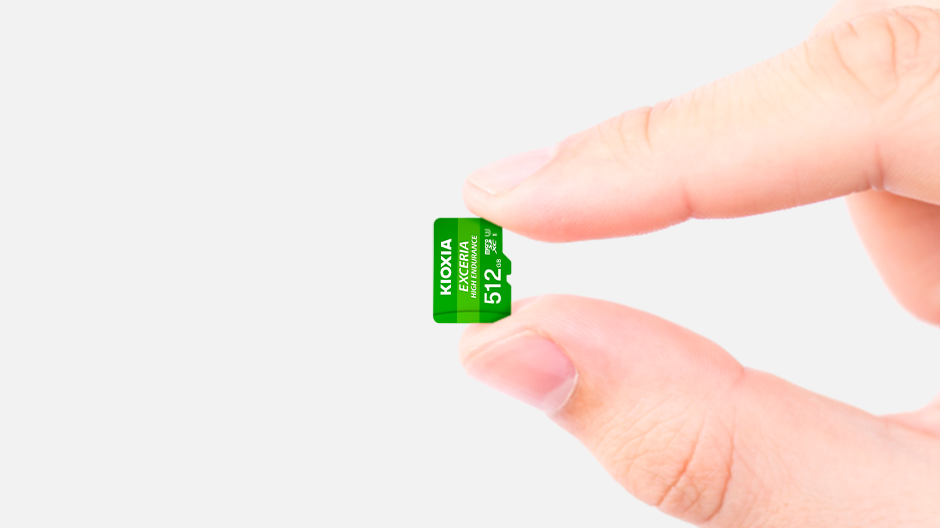

  • 外形尺寸 (LxWxH)

    15.0 x 11.0 x 1.0 mm

  • 重量

    约 0.3 g

性能

  • 读取速度高达*1

    100 MB/s

  • 写入速度高达*1

    32GB: 30 MB/s
    64GB, 128GB: 65 MB/s
    256GB, 512GB: 85 MB/s

  • UHS 速度等级*3

    32GB: U1
    64GB, 128GB, 256GB, 512GB: U3

  • 视频速度等级*3

    32GB: V10
    64GB, 128GB, 256GB, 512GB: V30

  • SD 速度等级*3

    C10

  • 应用性能等级*4

    A1

  • 连续拍摄*12

    32GB: 5,000 小时 (Full HD)
    64GB: 10,000 小时 (Full HD)
    128GB: 20,000 小时 (Full HD)
    256GB: 40,000 小时 (Full HD)
    512GB: 17,000 小时 (4K)

操作环境和保护性能

  • 运行温度

    -25 ℃ 至 85 ℃ (无结露)

  • 认证

    RoHS 适合*5

  • 防水

    IPX7防水*6,11

  • 防X射线

    ISO7816-1 compliant*7,11

  • 抗冲击

    通过5米跌落测试*8,11

  • 防止过热/爆燃

    装有保险丝*9,11

  • ESD免除

    静电防护*10,11

兼容性

  • 目标应用

    行车记录仪和监控摄像头及其他固定摄影设备

  • 32GB 及以下型号

    兼容microSDHC主设备、及支持FAT32文件系统的microSDXC主设备

  • 64GB及以上型号

    兼容microSDXC支持主设备

其他

  • 服务与支持

    32GB, 64GB, 128GB, 256GB: 3 年质保
    512GB: 年质保

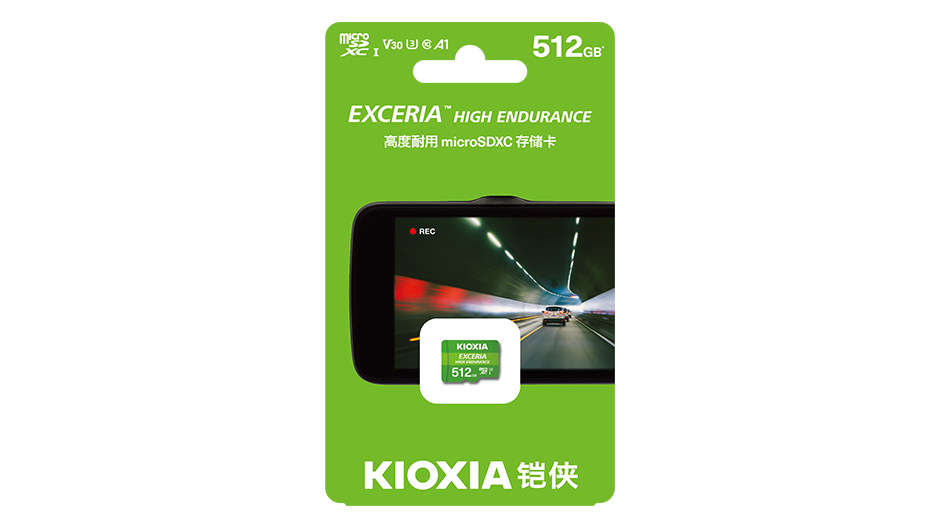

  • 包含配件

    --

  • 版权保护 (CPRM)

    支持

产品信息

  • 32GB

    PN: LMHE1G032GC4
    EAN: 4582563851184

  • 64GB

    PN: LMHE1G064GC4
    EAN: 4582563851191

  • 128GB

    PN: LMHE1G128GC4
    EAN: 4582563851207

  • 256GB

    PN: LMHE1G256GC4
    EAN: 4582563851214

  • 512GB

    PN: LMHE1G512GC4
    EAN: 4582563854086

【参考】 存储卡容量选择指南

容量

建议拍摄类型

每天预期拍摄时间

保修

512GB

4K (100Mbps)

9 小时

5年

256GB

Full HD (21Mbps)

24 小时

3年

128GB

Full HD (21Mbps)

16 小时

3年

64GB

Full HD (21Mbps)

8 小时

3年

32GB

Full HD (21Mbps)

4 小时

3年

寻找您所在地区的零售商或经销商。

获得最新产品简介、使用说明、安全使用说明、软件等。

KIOXIA microSD 存储卡比较表

* Table can be scrolled horizontally.



EXCERIA HIGH ENDURANCE

EXCERIA PLUS

EXCERIA G2

EXCERIA

Video Recording

64, 128, 256, 512GB: 4K
32GB: Full HD

4K

4K

Full HD

Max Read/Write Speed*1 (MB/s)

256, 512GB: 100/85
64, 128GB: 100/65
32GB: 100/30

256GB, 512GB, 1TB: 100/85
64, 128GB: 100/65
32GB: 98/65

100/50

100/--

Capacity*2

32, 64, 128, 256, 512GB

32, 64, 128, 256, 512GB, 1TB

32, 64, 128, 256, 512GB

16, 32, 64, 128, 256GB

SD Interface

UHS-I

UHS-I

UHS-I

UHS-I

SD Speed Class*3

C10

C10

C10

C10

UHS Speed Class*3

64, 128, 256, 512GB: U3
32GB: U1

U3

U3

U1

Video Speed Class*3

64, 128, 256, 512GB: V30
32GB: V10

V30

V30

--

Application Performance Class*4

A1

A1

A1

--

Waterproof*6,11

Yes

Yes

Yes

Yes

X-ray Proof*7,11

Yes

Yes

Yes

Yes

Shock Proof*8,11

Yes

Yes

Yes

Yes

Overheating / Ignition Prevention*9,11

Yes

Yes

Yes

Yes

ESD Immunity*10,11

Yes

Yes

Yes

Yes

CPRM

Supported

Supported

--

--

Endurance

High

Standard

Standard

Standard

Warranty Period

3 or 5 years

5 years

5 years

5 years

  1. 1 MB/s is calculated as 1,000,000 bytes/s. These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written. The write speed is lower than the read speed.
  2. Capacity is based on installed flash memory and not user available memory as part of the memory is used for management functions. Available user area are as listed above (1GB = 1,073,741,824 bytes).
  3. Speed classes indicate the results under the test conditions specified by SD Association.
  4. Application Performance Class is based on the result measured under the conditions specified by SD Association.
  5. KIOXIA Corporation defines “RoHS Compatible” products as products that either ( i ) contain no more than a maximum concentration value of 0.1% by weight in Homogeneous Materials for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), bis(2-ethylhexyl) phthalate (DEHP), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP) and diisobutyl phthalate (DIBP) and of 0.01% by weight in Homogeneous Materials for cadmium; or ( ii ) fall within any of the application exemptions set forth in the Annex to the RoHS Directive(*). This does not mean that Kioxia Corporation products labeled “RoHS COMPATIBLE” are entirely free of substances controlled by the RoHS Directive and does not constitute a warranty or guarantee that such products will comply with the specific laws and/or regulations adopted in any particular jurisdiction.
    *RoHS Directive: KIOXIA Corporation defines “RoHS Directive” as the DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
  6. According to IPX7 standard, the product (only card) can function, after it is submerged quietly and left for 30minutes in static tap water at room temperature(15 °C to 35 °C) and in depth of 1m and then it is taken out of the water.
  7. According to ISO7816-1 standard, the product can function, after contaminating this product on 0.1 Gy of X-ray.
  8. The product (only card) can function, after carrying out the gravity fall of this product (only card) from 5 m in height. ( Based on KIOXIA Corporation's test results.)
  9. KIOXIA Corporation does not warrant that the function of the fuse in the card will be error free, nor does it warrant that any data stored on the card will remain accessible or uncorrupted. Turn off the device immediately in case the card overheats and/or emits a burning smell.
  10. ESD test environment stipulated by IEC61000-4-2 150-pF energy storage capacitor, 330-Ω discharge resistor, ±15-kV air discharge.
  11. KIOXIA Corporation does not warrant any data stored on the product.
  12. Designed target of accumulated time based on Full HD (1920x1080) video content recorded at 21Mbps or 4K (3840x2160) video content recorded at 100 Mbps. Results may vary depending on a device and other conditions.
  • Product specifications and design are subject to change without prior notice.
