Disaggregated NVMe-oF™ Storage Management for Data Centers
KumoScale™ software implements the NVMe™ over Fabrics (NVMe-oF™). By which the product provides a fast, networked block storage service between initiator and target through high speed network connection.The software runs on storage node populated with NVMe™ SSD and realizes storage disaggregation. KumoScale software supports both RDMA and NVMe over TCP for network transport and that provides shared, clustered storage pool to enable logical split by NVMe namespace on a bunch of SSDs. Comparing to Direct Attached Storage(DAS), KumoScale volume management capability gives much flexibility to control big storage pool that consists of large individual SSDs.
No results to display.
Typical application and use case
- High performance storage service for cloud-native application
- Persistent storage service for OpenStack™ and Kubernetes®
- High speed block storage service for HPC applications and other scentific application
- Backend storage for AI/ML/DL applications
KumoScale™ software should work with generally available NVMe-oF™ initiator software as well as standard based NVMe SSDs. Proprietary software driver or hardware are not necessary.
Improve storage utilization and better flexibility to manage pooled fast NVMe™ SSD
Capacity and performance of latest PCIe® Gen 4 NVMe SSD is exploded than that of PCIe Gen 3 and are far more than a single compute node can consume. Sharing SSDs over different user applications and servers/VMs are an urgent need. Until NVMe-oF™ is introduced and widely spread, networked storage has been either slow or expensive, or both. It is no longer true with NVMe-oF™. KumoScale™ software increases storage utilization by sharing SSD, dividing shared SSD by NVMe name space and adds more flexibility to provision the right amount of capacity from the pool through the software at the performance of NVMe™ SSD.
Supports RDMA and NVMe over TCP protocol
KumoScale software supports RDMA and TCP transport protocol. If you seek faster and low latency storage service by KumoScale software, RoCEv2(RDMA over Converged Ethenet) should fit. On the other hand if you prefer network compatibility in existing data center network, TCP/IP could be used for KumoScale software. For network card validated with latest KumoScale software please refer to HCL(Hardware Compatibility List).
Adapting customer provisioning and telemetry architecture
- For OpenStack®, KumoScale™ software provides OpenStack Cynder® driver supporting Wallaby release and beyond.
- For Kubernetes® ,containerized applications are connected to KumoScale™ storage node by KumoScale Container Storage Interface (CSI) driver.
- For baremetal environment, Ansible™ playbooks or other popular automation tools may be used for deployment automation and provisioning of storage to compute nodes.
- For telemetry integration, KumoScale™ software provides interface to enable push/pull data exchange for existing telemetry (time series metrics like Prometheus™ and Grafana™) and logging (asynchronous events) infrastructure.
Data Protection and High Availability
Data Protection -Cross Domain Data Replication (CDDR)-
KumoScale™ software provides data protection via a technique called Cross Domain Data Replication (CDDR). CDDR creates multiple replicas of a logical volume on top of pooled SSDs, and maps them to storage nodes located in different failure domains. The replication is based on initiator and replica can be placed across 2nd or 3rd KumoScale™ storage node. For replication KumoScale agent runs on initiator to check volume availability. Once the agent detects volume falure whatever reasons, the volume is automatically reconnected to replicated volume on different storage node. After resilient volume comes back from the failure, all data is rebuild to fresh resilient volume automatically.
Ensure High Availability
KumoScale™ storage node supports L3 BGP (Border Gate Protocol) so that network path is automatically rerouted to available network path based on predefined optimal routing table when there is network connection issue.
Additional Deployment Options:
In addition to the KumoScale software’s streamlined appliance install, KumoScale software version 3.20 adds an option to deploy on generally available commercial operating systems. For large data centers, storage infrastructure of necessity tightly integrated with variety of sub systems such as provisioning, monitoring, telemetry and network. KumoScale “managed mode” enables complete flexibility for engineering and security administrators to configure, integrate and control the storage layer OS environment while KumoScale software “appliance mode” provides simpler installation and automated deployment with reduced deployment complexity for small & medium enterprise customers but with more limited OS configurability.
NVIDIA GPUDirect® Storage Support:
Version 3.20 adds support for NVIDIA GPUDirect Storage. GPUDirect Storage is a technology introduced in NVIDIA Kepler™ GPUs and NVIDIA CUDA™ 5.0 which enables a direct path for data exchange between the GPU and a third-party peer device using standard features of PCI Express®. Examples of third-party devices include network interfaces, video acquisition devices, and storage adapters. KumoScale software behaves as a storage adapter to GPUDirect Storage.
OpenID® Connect™ Support:
Version 3.20 adds support for third-party OpenID Connect 1.0. OpenID Connect is an identity layer on top of the OAuth 2.0 protocol that allows clients to verify the identity of users and session based on the authentication performed by an Authorization Server for service account permissions. KumoScale software support for OpenID Connect simplifies security integration into CSP data center environments.

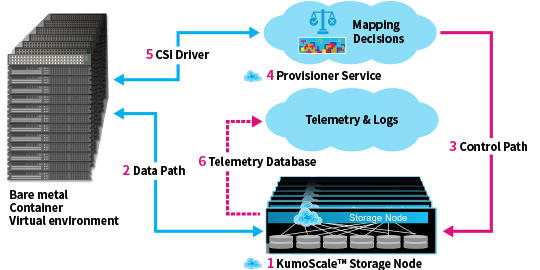

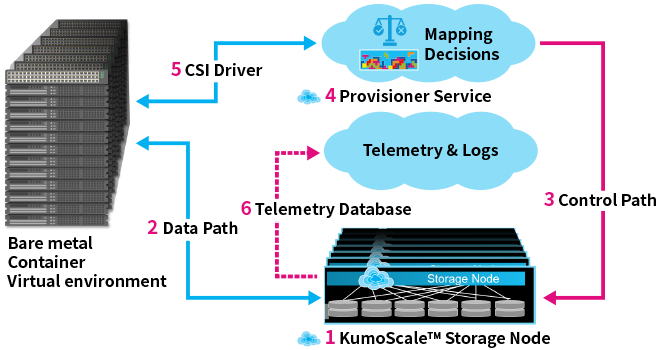

Data Center System Architecture
1. KumoScale™ Storage Node
Storage Server that runs KumoScale™ Software
2. Data Path
Network data path to connect between server application and storage via NVMe-oF
3. Control Path
Network control path to manage internal data services provided by KumoScale.
4. Provisioner Service
Carve out appropriate storage capacity and provision preferred QoS from storage node by predefined parameters.
5. CSI Driver
Container Storage Interface drive for KumoScale. Tightly coupled with CSI driver.
6. Telemetry Database
Database to store variety of statistics information in server and KumoScale storage node.
KumoScale™software has been tested on both bare metal, OpenStack and Kubernetes® deployments on a wide range of industry standard servers. Any NVMe-oF™ compliant initiator can be used, including Linux® kernel version 4.8 or later. Supported platform is show below.
2 x 128 GB SATA DOM
MCX516A-CCAT or MCX545A-CCAN ConnectX-5 EN network interface card, 100GbE dual/single port QSFP28, PCIe®3.0 x16 ROHS R6 MCX416A-CCAT ConnectX-4 EN network interface card, 100GbE dual/single port QSFP28, PCIe®3.0 x16 ROHS R6 Solarflare Communications XtremeScale SFC9250 10/25/40/50/100G Ethernet Controller
Dual power supply, hot swappable
A dedicated management port is optional. KumoScale™ can use the data port for management traffic, or it can utilize a dedicated management port.
KumoScale™ Provisioner does not require any additional servers nor a container.
Please contact us from Inquiry form.
- Please agree to the Important Considerations before Making an Inquiry and select KumoScale in the "Products" in the inquiry form to contact us.
No results to display.
- Contained information, such as price, specification, services, and contact, is as of announcement date.
- : 15us latency addition at 4KB read compared to DAS. Measured by KIOXIA in June 2020 using measurement tool specified by KIOXIA. 15us is the difference of 4KB read latency between DAS and NVMe-oF™ storage configuration on the same hardware.
