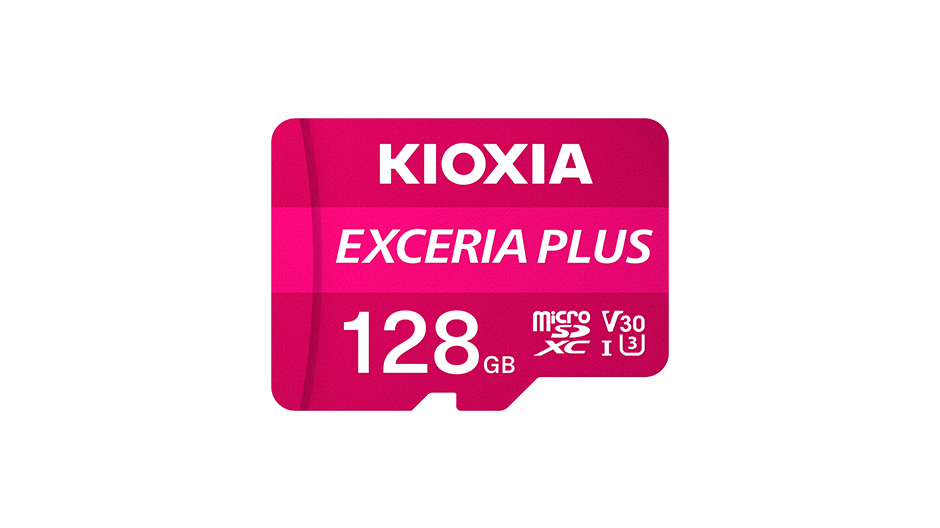

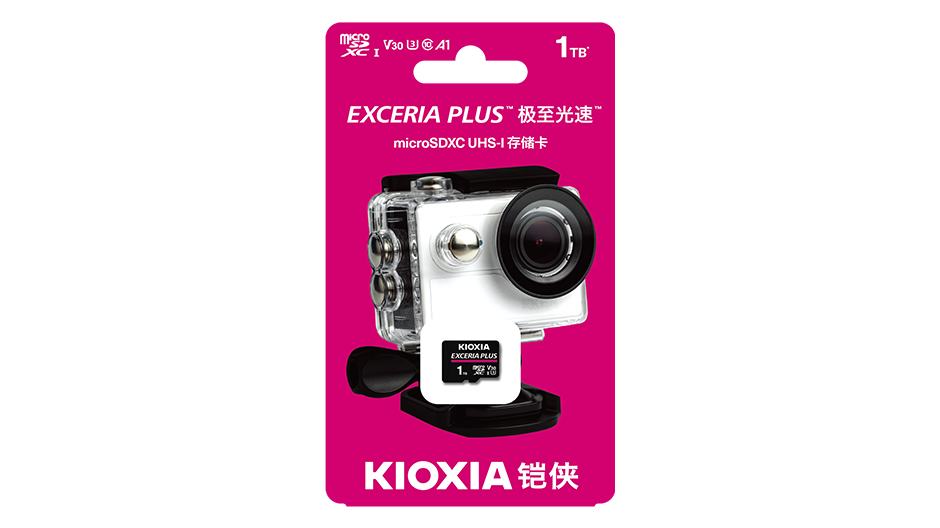

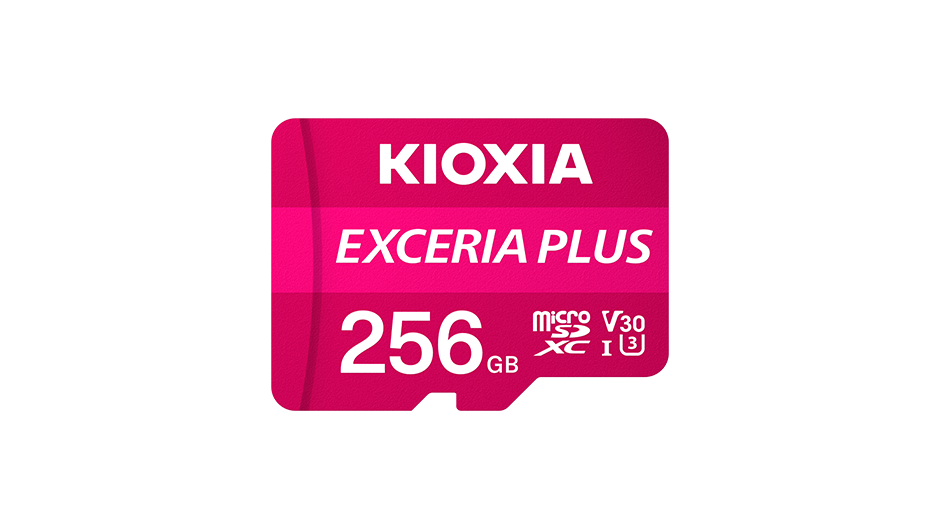

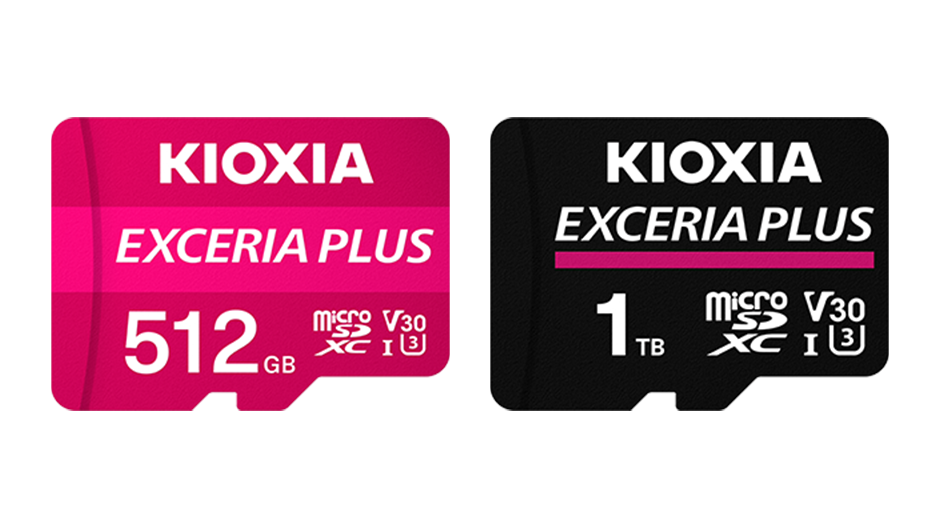

EXCERIA PLUS™ 极至光速™ microSD存储卡

精彩表现

Image of exceria-plus_001
Image of exceria-plus_002
Image of exceria-plus_003
Image of exceria-plus_004
Image of exceria-plus_005
Image of exceria-plus_006
Image of exceria-plus_007
Image of exceria-plus_008
Image of exceria-plus_009

如何购买

铠侠EXCERIA PLUS microSD 存储卡采用 BiCS FLASH™ 3D 闪存技术,可提供高达 1TB 的容量,为您的照片和视频提供充足的存储空间。它符合视频速度等级 30(V30),这是 4K 视频录制的视频速度等级标准。

除了 UHS 速度等级 3 (U3)以外, EXCERIA PLUS microSD存储卡的应用程序性能等级为 A1,它使您能够更顺畅地在 microSD 卡上存储和运行 Android 应用程序。

特性

4K Video Recording
4K Video Recording 帮助模态窗口
Android™ Compatible
Android™ Compatible 帮助模态窗口
Waterproof
Waterproof 帮助模态窗口
Shock Proof
Shock Proof 帮助模态窗口
X-ray Proof
X-ray Proof 帮助模态窗口
Temperature Durability
Temperature Durability 帮助模态窗口
ESD Immunity
ESD Immunity 帮助模态窗口
 Overheating/Ignition Prevention
Overheating/Ignition Prevention 帮助模态窗口

准备,行动!

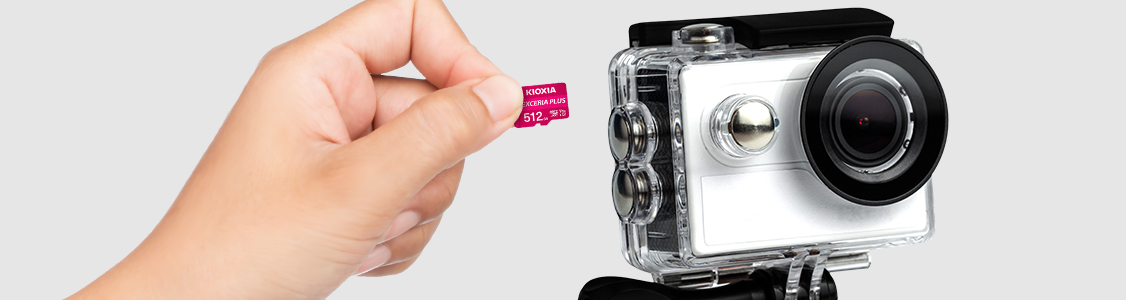

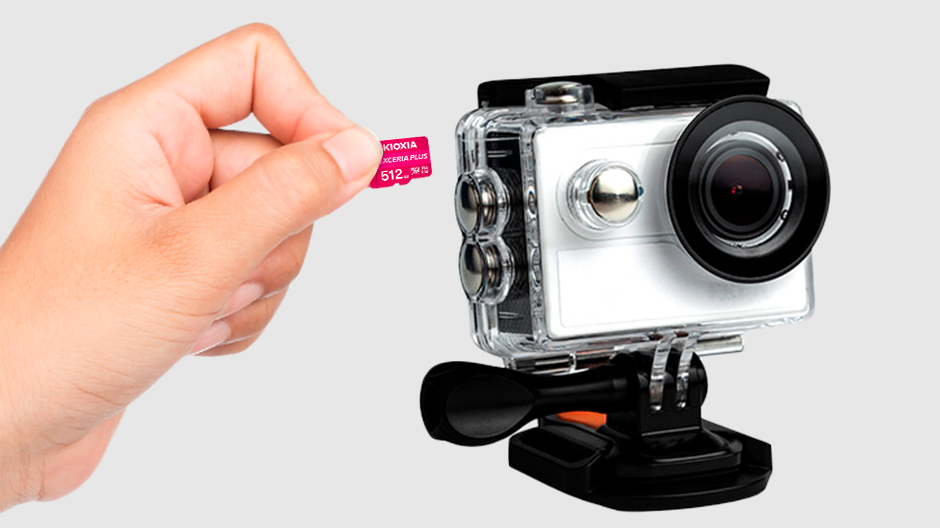

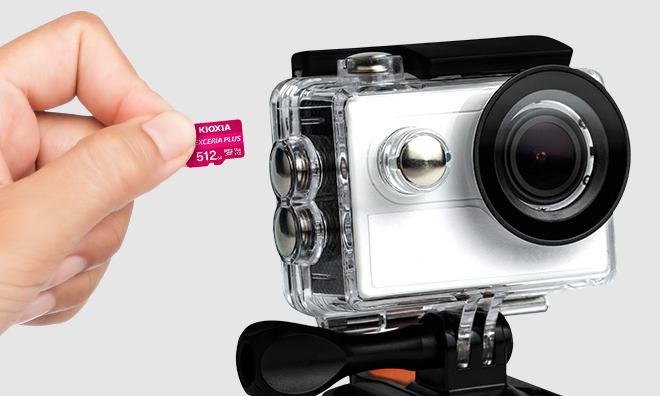

高性能和小尺寸使得EXCERIA PLUS microSD存储卡成为动态拍摄和运动相机的好伙伴,同时也适用于无人机。

以4K或全高清录制和播放

现在,您可以使用便携式设备以4K或全高清拍摄您的精彩时刻。这是因为EXCERIA PLUS microSD存储卡支持UHS-I,速度等级为U3(V30)的4K视频录制和播放。

您需要的速度

在1TB的容量产品、高达100MB/s的读取速度和高达85MB/s的写入速度*1 下,您可以跟上周围的动作。完成拍摄后,您可以享受快速文件传输。

尽情拍摄和录制

EXCERIA PLUS microSD存储卡的可用容量为1TB,最多可存储154,070张照片(1800万像素)、5,990分钟的全高清视频(21Mbps)和1,258分钟的4K视频(100Mbps)。

预估拍摄图片张数及视频录制时间 [分钟]

照片(张)*

* 表格可以水平滚动。

容量

5 Mpixel

10 Mpixel

18 Mpixel

1TB

650,840

304,420

154,070

512GB

325,420

152,210

77,030

256GB

162,710

76,100

38,510

128GB

81,350

38,050

19,250

64GB

40,670

19,020

9,620

32GB

20,330

9,510

4,810

  • 拍摄数量:假定压缩率为 1/4。 可以拍摄的照片数量取决于拍摄对象、拍摄条件、分辨率和压缩率。

视频(分钟)*

* 表格可以水平滚动。

容量

HD(12Mbps)

Full HD(21Mbps)

4K(100Mbps)

1TB

10,480

5,990

1,258

512GB

5,240

2,990

629

256GB

2,620

1,490

314

128GB

1,310

740

157

64GB

650

370

78

32GB

320

180

39

  • 录制时间:实际录制时间会因您的设备、分辨率和压缩率而异。计算为 1 Mbps = 1,000,000 bps。

EXCERIA PLUS microSD存储卡产品规格

容量和尺寸

  • 容量

    32GB (microSDHC), 64GB, 128GB, 256GB, 512GB, 1TB (microSDXC)

  • 用户可用容量*2

    28.8GB, 57.6GB, 115.2GB, 230.4GB, 460.8GB, 921.6GB

  • 接口

    UHS-I

  • 外形尺寸 (LxWxH)

    15.0 x 11.0 x 1.0 mm

  • 重量

    约 0.3 g

性能

  • 读取速度高达*1

    32GB: 98 MB/s
    64GB, 128GB, 256GB, 512GB, 1TB: 100 MB/s

  • 写入速度高达*1

    32GB, 64GB, 128GB: 65 MB/s
    256GB, 512GB, 1TB: 85 MB/s

  • UHS 速度等级*3

    U3

  • 视频速度等级*3

    V30

  • SD 速度等级*3

    C10

  • 应用性能等级*4

    A1

操作环境和保护性能

  • 运行温度

    -25 ℃ 至 85 ℃ (无结露)

  • 认证

    RoHS 适合*5

  • 防水

    IPX7防水*6,11

  • 防X射线

    ISO7816-1 compliant*7,11

  • 抗冲击

    通过5米跌落测试*8,11

  • 防止过热/爆燃

    装有保险丝*9,11

  • ESD免除

    静电防护*10,11

兼容性

  • 目标应用

    相机,移动电话,平板电脑,无人机

  • 32GB 及以下型号

    兼容microSDHC主设备、及支持FAT32文件系统的microSDXC主设备

  • 64GB及以上型号

    兼容支持exFAT文件系统的microSDXC主设备

其他

  • 服务与支持

    5 年质保

  • 包含配件

    --

  • 版权保护 (CPRM)

    支持

产品信息

  • 32GB

    PN: LMPL1M032GC4
    EAN: 4582563851047

  • 64GB

    PN: LMPL1M064GC4
    EAN: 4582563851054

  • 128GB

    PN: LMPL1M128GC4
    EAN: 4582563851061

  • 256GB

    PN: LMPL1M256GC4
    EAN: 4582563851078

  • 512GB

    PN: LMPL1M512GC4
    EAN: 4582563851085

  • 1TB

    PN: LMPL1M001TC4
    EAN: 4582563853775

寻找您所在地区的零售商或经销商。

获得最新产品简介、使用说明、安全使用说明、软件等。

KIOXIA microSD 存储卡比较表

* Table can be scrolled horizontally.



EXCERIA HIGH ENDURANCE

EXCERIA PLUS

EXCERIA G2

EXCERIA

Video Recording

64, 128, 256, 512GB: 4K
32GB: Full HD

4K

4K

Full HD

Max Read/Write Speed*1 (MB/s)

256, 512GB: 100/85
64, 128GB: 100/65
32GB: 100/30

256GB, 512GB, 1TB: 100/85
64, 128GB: 100/65
32GB: 98/65

100/50

100/--

Capacity*2

32, 64, 128, 256, 512GB

32, 64, 128, 256, 512GB, 1TB

32, 64, 128, 256, 512GB

16, 32, 64, 128, 256GB

SD Interface

UHS-I

UHS-I

UHS-I

UHS-I

SD Speed Class*3

C10

C10

C10

C10

UHS Speed Class*3

64, 128, 256, 512GB: U3
32GB: U1

U3

U3

U1

Video Speed Class*3

64, 128, 256, 512GB: V30
32GB: V10

V30

V30

--

Application Performance Class*4

A1

A1

A1

--

Waterproof*6,11

Yes

Yes

Yes

Yes

X-ray Proof*7,11

Yes

Yes

Yes

Yes

Shock Proof*8,11

Yes

Yes

Yes

Yes

Overheating / Ignition Prevention*9,11

Yes

Yes

Yes

Yes

ESD Immunity*10,11

Yes

Yes

Yes

Yes

CPRM

Supported

Supported

--

--

Endurance

High

Standard

Standard

Standard

Warranty Period

3 or 5 years

5 years

5 years

5 years

  1. 1 MB/s is calculated as 1,000,000 bytes/s. These values are the best values obtained in a specific test environment at KIOXIA Corporation and KIOXIA Corporation warrant neither read nor write speeds in individual devices. Read and write speed may vary depending on a device used and file size read or written. The write speed is lower than the read speed.
  2. Capacity is based on installed flash memory and not user available memory as part of the memory is used for management functions. Available user area are as listed above (1GB = 1,073,741,824 bytes).
  3. Speed classes indicate the results under the test conditions specified by SD Association.
  4. Application Performance Class is based on the result measured under the conditions specified by SD Association.
  5. KIOXIA Corporation defines “RoHS Compatible” products as products that either ( i ) contain no more than a maximum concentration value of 0.1% by weight in Homogeneous Materials for lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs), polybrominated diphenyl ethers (PBDEs), bis(2-ethylhexyl) phthalate (DEHP), dibutyl phthalate (DBP), benzyl butyl phthalate (BBP) and diisobutyl phthalate (DIBP) and of 0.01% by weight in Homogeneous Materials for cadmium; or ( ii ) fall within any of the application exemptions set forth in the Annex to the RoHS Directive(*). This does not mean that Kioxia Corporation products labeled “RoHS COMPATIBLE” are entirely free of substances controlled by the RoHS Directive and does not constitute a warranty or guarantee that such products will comply with the specific laws and/or regulations adopted in any particular jurisdiction.
    *RoHS Directive: KIOXIA Corporation defines “RoHS Directive” as the DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
  6. According to IPX7 standard, the product (only card) can function, after it is submerged quietly and left for 30minutes in static tap water at room temperature(15 °C to 35 °C) and in depth of 1m and then it is taken out of the water.
  7. According to ISO7816-1 standard, the product can function, after contaminating this product on 0.1 Gy of X-ray.
  8. The product (only card) can function, after carrying out the gravity fall of this product (only card) from 5 m in height. ( Based on KIOXIA Corporation's test results.)
  9. KIOXIA Corporation does not warrant that the function of the fuse in the card will be error free, nor does it warrant that any data stored on the card will remain accessible or uncorrupted. Turn off the device immediately in case the card overheats and/or emits a burning smell.
  10. ESD test environment stipulated by IEC61000-4-2 150-pF energy storage capacitor, 330-Ω discharge resistor, ±15-kV air discharge.
  11. KIOXIA Corporation does not warrant any data stored on the product.
  12. Designed target of accumulated time based on Full HD (1920x1080) video content recorded at 21Mbps or 4K (3840x2160) video content recorded at 100 Mbps. Results may vary depending on a device and other conditions.
  • Product specifications and design are subject to change without prior notice.
